Product Name |
G80 Europe link assembly | ||||||||
|
Product Material |
G80 Steel | ||||||||
|
Product No. |

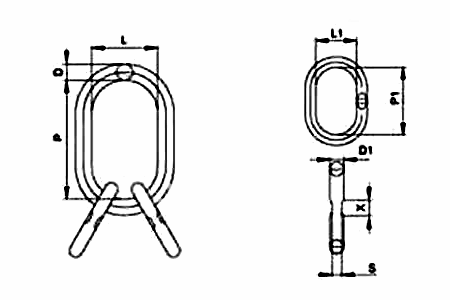

Working Load Limit | Dimensions | WEIGHT | ||||||
| D | P | L | D1 | P1 | L1 | S | |||
|
MHAE055-GL001 |
2.36 | 19 | 135 | 75 | 13 | 60 | 38 | 8x25 | 1.315 |
|
MHAE055-GL002 |
3.15 | 19 | 135 | 75 | 13 | 60 | 38 | 8x25 | 1.315 |
|
MHAE055-GL003 |
4.25 | 23 | 160 | 90 | 16 | 70 | 34 | 8x25 | 2.32 |
|
MHAE055-GL004 |
6.7 | 27 | 180 | 100 | 18 | 85 | 40 | 11.5x35 | 3.52 |
|
MHAE055-GL005 |
11.2 | 33 | 200 | 110 | 23 | 115 | 50 | 14x35 | 6.26 |
|
MHAE055-GL006 |
17 | 36 | 260 | 140 | 27 | 140 | 65 | 18x46 | 9.56 |
|
MHAE055-GL007 |
21.2 | 45 | 340 | 180 | 33 | 150 | 70 | -- | 18.92 |
|
MHAE055-GL008 |
26.5 | 50 | 350 | 190 | 33 | 150 | 70 | -- | 22.65 |
|
MHAE055-GL009 |
31.5 | 50 | 350 | 190 | 36 | 170 | 75 | -- | 25.19 |
|
MHAE055-GL010 |
45 | 60 | 400 | 200 | 40 | 170 | 80 | -- | 36.01 |
|
MHAE055-GL011 |
67 | 70 | 460 | 250 | 50 | 200 | 100 | -- | 64.4 |
| Note£º 1. Accord With standards DIN5688 3-B6 2. Adopted high-quality alloy steel and throughout swaged forging process and Welding. 3. Special Heated Treated. 4. Non-destructive test was performed. | |||||||||
