Product Name |
Master Link-Type A | |||||
|
Product Material |
Steel | |||||
|
Product No. |

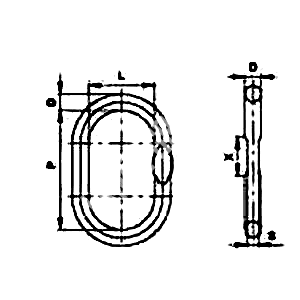

Working Load Limit | D | P | L | S¡ÁX | Weight |
|
MHAE055-ML001 |
1.6 | 13 | 110 | 60 | 8¡Á25 | 0.34 |
|
MHAE055-ML002 |
2.12 | 16 | 110 | 60 | 8¡Á25 | 0.53 |
|
MHAE055-ML003 |
3.15 | 19 | 135 | 75 | 8¡Á35 | 0.915 |
|
MHAE055-ML004 |
5.3 | 23 | 160 | 90 | 11.5¡Á35 | 1.65 |
|
MHAE055-ML005 |
8 | 27 | 180 | 100 | 14¡Á46 | 2.46 |
|
MHAE055-ML006 |
11.2 | 33 | 200 | 110 | 18¡Á46 | 4.14 |
|
MHAE055-ML007 |
14 | 36 | 260 | 140 | -- | 6.22 |
|
MHAE055-ML008 |
17 | 40 | 300 | 160 | -- | 8.95 |
|
MHAE055-ML009 |
21.2 | 45 | 340 | 180 | -- | 12.82 |
|
MHAE055-ML0010 |
31.5 | 50 | 350 | 190 | -- | 16.55 |
|
MHAE055-ML0011 |
45 | 60 | 400 | 200 | -- | 27.01 |
| Note: 1. Adopted high-quality alloy steel and throughout swaged forging process. 2. Proof loaded at 2 times the Working Load Limit. Minimum Ultimate Load is 4 times the Working Load Limit. 3. Heat Treated. | ||||||
