| Product Name | Weld less Ring | |||
| Product Material | Steel | |||
|
Product No. |

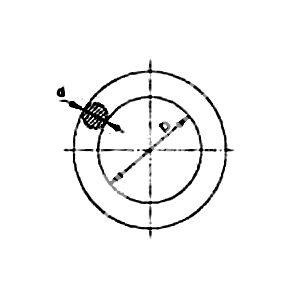

Working Load Limit | D | d | Weight |
|
MHAE055-WR001 |
2 | 100 | 20 | 0.85 |
|
MHAE055-WR002 |
3 | 100 | 24 | 1.39 |
|
MHAE055-WR003 |
5 | 150 | 28 | 2.71 |
|
MHAE055-WR004 |
8 | 175 | 33 | 4.41 |
|
MHAE055-WR005 |
10 | 225 | 38 | 7.40 |
|
MHAE055-WR006 |
16 | 225 | 45 | 10.65 |
|
MHAE055-WR007 |
20 | 250 | 52 | 15.90 |
|
MHAE055-WR008 |
25 | 315 | 58 | 24.43 |
| Note: 1. Adopted high-quality alloy steel and throughout swaged forging process. 2. Proof loaded at 2 times the Working Load Limit. Minimum Ultimate Load is 4 times the Working Load Limit. 3. Heat Treated. | ||||
