Product Name Single-arm Elevator Link
Product Material Alloy Steel

Product No

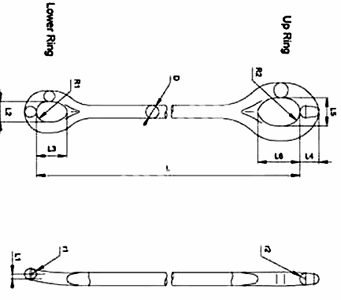

 D r1 R1 L1 L2 L3 r2 R2 L4 L5 L6 L Weight
MHAE044-SA001 53 21 53 20 106 150 29 80 70 140 203 1500 90
MHAE044-SA002 68 24 51 25 102 150 29 64 95 140 210 1800 165
MHAE044-SA003 78 31 70 30 140 200 35 102 135 203 250 2700 346
MHAE044-SA004 89 37 70 35 140 203 35 102 135 203 254 3300 462
MHAE044-SA005 115 48 83 50 170 250 48 121 160 242 300 3600 890
Note:
1. Adopted high-quality and throughout swaged forging process.
2. WORKING LOAD LIMIT: 75~500 T.
3. Both ends are shape by swaged forging process; the pole is pulled by open forging.
4. Special Heated Treated.
5. Every link be NDE checking and every link test by 1.5 rate work load before deliver.
6. It is applicable for drilling operation for deep well and super-deep well.
