Product Name |

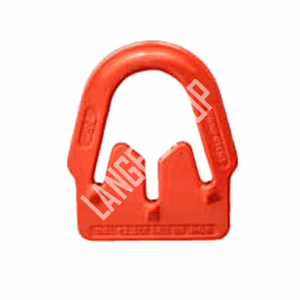

Chain control link | ||||||||
Product Material |
Steel | ||||||||
Product No. |
Chains Applicable Diameter | Working Load Limit 90กใ |
Working Load Limit 60กใ |

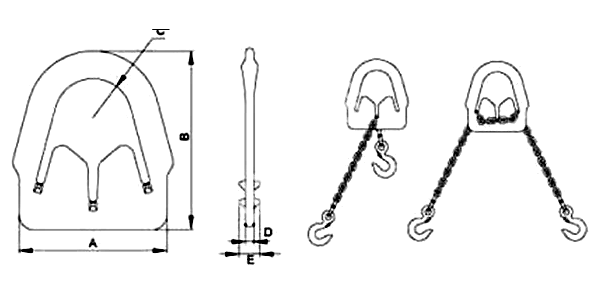

A | B | C | D | E | WEIGHT |
| MHAE043-ML001 | 6 | 9.31 | 15.97 | 145 | 175 | 38 | 8 | 20 | 1 |
| MHAE043-ML002 | 8 | 15.58 | 27.05 | 155 | 193 | 40 | 11 | 28 | 1.5 |
| MHAE043-ML003 | 10 | 31.56 | 54.68 | 160 | 207 | 42.5 | 13 | 33.5 | 2.12 |
Note: |
|||||||||
