Product Name Hoist Shank Hooks
Product Material

Carbon
AlloyBronze

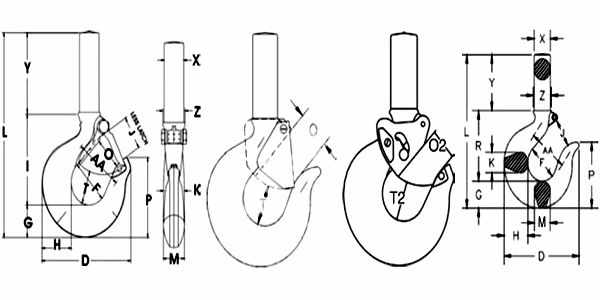

Product No. Working Load Limit (t)* Dimensions (in.)
Carbon Alloy Bronze D F G H J K L M O O2 P R T T2 X* Y Z AA
MHAE0155-SH001 3/4 1.25 .5 2.86 1.25 0.73 0.81 0.93 0.63 5.14 0.63 .93? - 1.96 2.35 0.97 - 0.59 2.06 0.69 1.5
MHAE0155-SH002 1 1.6 .6 3.16 1.38 0.84 0.94 0.97 0.71 5.68 0.71 .97? - 2.22 2.59 0.97 - 0.66 2.25 0.78 2
MHAE0155-SH003 1.6 2.5 1 3.59 1.5 1 1.16 1.06 0.88 6.35 0.88 1.06? - 2.44 2.76 1.03 - 0.72 2.59 0.88 2
MHAE0155-SH004 2 3.2 1.4 4 1.62 1.14 1.31 1.19 0.94 7.14 0.94 1.16? - 2.78 3.16 1.16 - 0.88 2.84 1 2
MHAE0155-SH005 3.2 5.4 2 4.84 2 1.44 1.63 1.5 1.31 8.63 1.13 1.36? 1 3.47 3.85 1.53 1.5 1.16 3.44 1.25 2.5
MHAE0155-SH006 5 8 3.5 6.28 2.5 1.82 2.06 1.78 1.66 10.43 1.44 1.61? 1.31 4.59 4.77 1.96 1.88 1.41 3.84 1.56 3
MHAE0155-SH007 7.5 11.5 5 7.54 3 2.26 2.63 2.41 1.88 12.52 1.63 2.08? 1.81 5.25 5.88 2.47 2.25 1.81 4.38 1.94 4
MHAE0155-SH008 10 16 6.5 8.34 3.25 2.6 2.94 2.62 2.19 13.47 1.94 2.27? 2 5.96 6.37 2.62 2.31 2 4.5 2.19 4
MHAE0155-SH009 15 22 10 10.34 4.25 3.01 3.5 3.41 2.69 16.65 2.38 3.02? 2.75 6.88 8.14 2.83 2.56 2.56 5.5 2.63 5
MHAE0155-SH010 20 30 - 13.62 5 3.62 4.62 4 3 23.09 3 3.25 - 8.78 9.44 3.44 - 3.12 10 3.12 6.5
MHAE0155-SH011 20 30 - 13.62 5 3.62 4.62 4 3 31.09 3 3.25 - 8.78 9.44 3.44 - 3.12 18 3.12 6.5
MHAE0155-SH012 25 37 - 14.06 5.38 4.56 5 4.25 3.62 32.12 3 3 - 11.31 12.5 3.88 - 4 15 4 7
MHAE0155-SH013 25 37 - 14.06 5.38 4.56 5 4.25 3.62 41.12 3 3 - 11.31 12.5 3.88 - 4 24 4 7
MHAE0155-SH0114 30 45 - 15.44 6 5.06 5.5 4.75 3.72 34.12 3.25 3.38 - 12.56 14 4.75 - 4.19 15 4.19 8
MHAE0155-SH015 30 45 - 15.44 6 5.06 5.5 4.75 3.72 43.12 3.25 3.38 - 12.56 14 4.75 - 4.19 24 4.19 8
MHAE0155-SH016 40 60 - 18.5 7 6 6.5 5.75 4.44 36.06 3.91 4.12 - 14.75 15.56 5.69 - 4.5 14.5 4.5 10
MHAE0155-SH017 40 60 - 18.5 7 6 6.5 5.75 4.44 47.56 3.91 4.12 - 14.75 15.56 5.69 - 4.5 26 4.5 10
MHAE0155-SH018 50 75 - 20.62 7.75 6.69 7.25 6.5 5.25 41.16 4.25 4.88 - 16.53 19.38 6 - 5 15 5 11.5
MHAE0155-SH019 50 75 - 20.62 7.75 6.69 7.25 6.5 5.25 49.16 4.25 4.88 - 16.53 19.38 6 - 5 23 5 11.5
MHAE0155-SH020 - 100 - 23 6.81 8.59 9.88 5.88 5.5 42.12 5.5 4.5 - 17.25 18.41 7 - 7 15 7 12
MHAE0155-SH021 23 6.81 8.59 9.88 5.88 5.5 48.12 5.5 4.5 - 17.25 18.41 7 - 7 21 7 12
MHAE0155-SH022 24.38 6.75 9.12 10.94 6 6 45.75 6 4.5 - 18 18.38 7 - 7.25 18 7.25 13
MHAE0155-SH023 26.69 7.5 9.75 11.81 6.6 7 50.5 7 5 - 19.75 20.5 8 - 8 20 8 13
MHAE0155-SH024 30.12 9.5 10.62 12.94 8 7.25 54.69 8 6.25 - 22.69 23.5 8.25 - 9.5 20 9.5 15
