Marine Pipe Fitting >> Flanges >> JIS Flanges >> Integral FlangesJIS B2220-1984 Slip-on welding steel pipe flange 10K

��
��

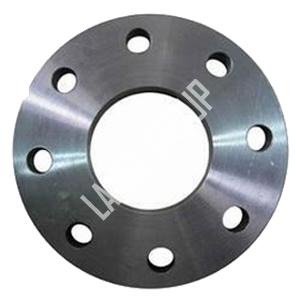

Product Name:		Slip-on welding steel pipe flange 10k
Standard		JIS B2220-1984

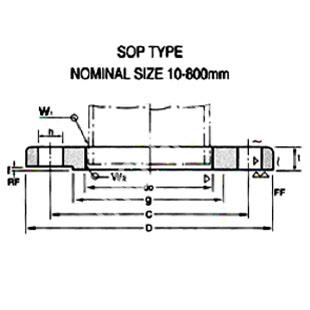

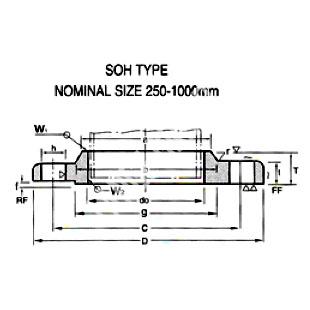

Product No:		Nominal Bore of Flange	Out.Applicable Pipe	do	D	Dimensions of Flange							Dia.of Bolt			Nominal Bolt Size	Weight(kg)
						t	T	Diam.of Hub		r	f	g	C	Num.of Bolt Holes	h		SOP	BL	SOH
								a	b
MFVE608-JIS01		10	17.3	17.8	90	12	��	��	��	��	1	46	65	4	15	M12	0.52	0.54	��
MFVE608-JIS02		15	21.7	22.2	95	12	��	��	��	��	1	51	70	4	15	M12	0.57	0.61	��
MFVE608-JIS03		20	27.2	27.7	100	14	��	��	��	��	1	56	75	4	15	M12	0.73	0.79	��
MFVE608-JIS04		25	34	34.5	125	14	��	��	��	��	1	67	90	4	19	M16	1.13	1.24	��
MFVE608-JIS05		32	42.7	43.2	135	16	��	��	��	��	2	76	100	4	19	M16	1.48	1.66	��
MFVE608-JIS06		40	48.6	49.1	140	16	��	��	��	��	2	81	105	4	19	M16	1.56	1.81	��
MFVE608-JIS07		50	60.5	61.1	155	16	��	��	��	��	2	96	120	4	19	M16	1.88	2.23	��
MFVE608-JIS08		65	76.3	77.1	175	18	��	��	��	��	2	116	140	4	19	M16	2.6	3.3	��
MFVE608-JIS09		80	89.1	90	185	18	��	��	��	��	2	125	150	8	19	M16	2.61	3.5	��
MFVE608-JIS10		*90	101.6	102.6	195	18	��	��	��	��	2	135	160	8	19	M16	2.76	4	��
MFVE608-JIS11		100	114.3	115.4	210	18	��	��	��	��	2	151	175	8	19	M16	3.14	4.6	��
MFVE608-JIS12		125	139.8	141.2	250	20	��	��	��	��	2	182	210	8	23	M20	4.77	7.3	��
MFVE608-JIS13		150	165.2	166.6	280	22	��	��	��	��	2	212	240	8	23	M20	6.34	10.1	��
MFVE608-JIS14		*175	190.7	192.1	305	22	��	��	��	��	2	237	265	12	23	M20	6.82	11.8	��
MFVE608-JIS15		200	216.3	218	330	22	��	��	��	��	2	262	290	12	23	M20	7.53	14	��
MFVE608-JIS16		*225	241.8	243.7	350	22	��	��	��	��	2	282	310	12	23	M20	7.74	15.8	��
MFVE608-JIS17		250	267.4	269.5	400	24	36	288	292	6	2	324	355	12	25	M22	11.8	22.7	12.7
MFVE608-JIS18		300	318.5	321	445	24	38	340	346	6	3	368	400	16	25	M22	12.7	21.8	13.8
MFVE608-JIS19		350	355.6	358.1	490	26	42	380	386	6	3	413	445	16	25	M22	16.4	37.1	18.2
MFVE608-JIS20		400	406.4	409	560	28	44	436	442	6	3	475	510	16	27	M24	23	52.5	25.2
MFVE608-JIS21		450	457.2	460	620	30	48	496	502	6	3	530	565	20	27	M24	29.5	68.8	33
MFVE608-JIS22		500	508	511	675	30	48	548	554	6	3	585	620	20	27	M24	33.5	82.1	37.6
MFVE608-JIS23		*550	558.8	562	745	32	52	604	610	6	3	640	680	20	33	M30	43.1	105.8	49.7
MFVE608-JIS24		600	609.6	613	795	32	52	656	662	6	3	690	730	24	33	M30	45.7	120.2	52.6
MFVE608-JIS25		650	660.4	664	845	34	56	706	712	6	3	740	780	24	33	M30	52.1	145	60.6
MFVE608-JIS26		700	711.2	715	905	34	58	762	770	6	3	800	840	24	33	M30	59.5	167.2	70.6
MFVE608-JIS27		750	762	766	970	36	62	816	824	6	3	855	900	24	33	M30	73.2	204.2	85.8
MFVE608-JIS28		800	812.8	817	1020	36	64	868	876	6	3	905	950	28	33	M30	76.4	225.4	91.2
MFVE608-JIS29		*850	863	868	1070	36	66	920	928	6	3	955	1000	28	33	M30	80.7	248.8	98.6
MFVE608-JIS30		900	914.4	919	1120	38	70	971	979	6	3	1005	1050	28	33	M30	89.4	288.4	109
MFVE608-JIS31		1000	1016	1021	1235	40	74	1073	1081	6	3	1110	1160	28	39	M36	109.2	367.7	133
MFVE608-JIS32		*1100	1117.6	1123	1345	42	75	��	��	��	3	1220	1270	28	39	M36	131.6	460	��
MFVE608-JIS33		*1200	1219.2	1225	1465	44	78	��	��	��	3	1325	1380	32	39	M36	163.5	572.2	��
MFVE608-JIS34		*1350	1371.6	��	1630	48	82	��	��	��	3	1480	1540	36	45	M42	204.7	769	��
MFVE608-JIS35		*1500	1524	��	1795	50	90	��	��	��	3	1635	1700	40	45	M42	250.2	974.9	��
1.Flanges of star marked nominal diameter not be used
2.The facing of flanges shall conform to KS B1509
Raw Material For Forged Flange
Grade		C		Si		Mn		P		S		Al		Ni	Cu	Cr	V	Nb	Ti
C22.8		0.18-0.23		��0.4		0.4-0.9		��0.035		��0.03		0.015-0.05		��0.3	��0.03	��0.3	��	��	��
P250GH		0.18-0.23		0.2-0.4		0.4-0.9		0.025		0.015		0.015-0.05		��0.3	��0.03	��0.3	0.02	��	��
Q235		0.14-0.22		��0.3		0.3-0.65		��0.045		��0.05		��		��	��	��	��	��	��
Q345D		��0.18		��0.55		1-1.6		��0.03		��0.03		��		��0.03	��0.3	��0.3	0.02-0.15	0.015-0.06	0.02-0.2
20G		0.17-0.23		0.17-0.37		0.35-0.65		��0.035		��0.035		��		��0.3	��0.25	��0.25	��	��	��
A105		��0.35		0.1-0.35		0.6-1.05		��0.035		��0.04		��		��0.4	��0.4	��0.3	��	��	��
SS400		��0.21		��0.3		��0.14		��0.035		��0.035		��		��	��	��	��	��	��
RST37.2		��0.17		��0.12		��1.25		��0.035		��0.035		��		��	��	��	��	��	��
S235JRG2		��0.17		��0.12		��1.25		��0.035		��0.035		��		��	��	��	��	��	��
