Marine Pipe Fitting >> Lap Joint Stud End >> Lap Joint Stud End Long Pattern

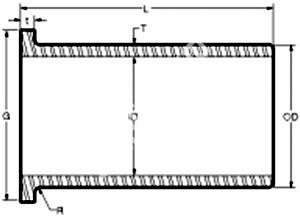

Product Name: Lap Joint Stud End Long Pattern
Product NO: Nom. Pipe Size OD Lap Dia. (G) Length Radius SCH 10S SCH 40S
ID Wall Thick (T) Lap Thick (t) ID Wall Thick (T) Lap Thick (t)
(L) ?
MFVE602-SEL01 1/2 0.84 1 3/8 3 1/8 0.674 0.083 0.095 0.622 0.109 0.109
MFVE602-SEL02 3/4 1.05 1 11/16 3 1/8 0.884 0.083 0.097 0.824 0.113 0.113
MFVE602-SEL03 1 1.315 2 4 1/8 1.097 0.109 0.12 1.049 0.133 0.133
MFVE602-SEL04 1 1/4 1.66 2 1/2 4 3/16 1.442 0.109 0.124 1.38 0.14 0.14
MFVE602-SEL05 1 1/2 1.9 2 7/8 4 1/4 1.682 0.109 0.126 1.61 0.145 0.145
MFVE602-SEL06 2 2.375 3 5/8 6 5/16 2.157 0.109 0.13 2.067 0.154 0.154
MFVE602-SEL07 2 1/2 2.875 4 1/8 6 3/8 2.635 0.12 0.156 2.469 0.203 0.203
MFVE602-SEL08 3 3.5 5 6 7/16 3.26 0.12 0.161 3.068 0.216 0.216
MFVE602-SEL09 3 1/2 4 5 1/2 6 7/16 3.76 0.12 0.165 3.548 0.226 0.226
MFVE602-SEL10 4 4.5 6 3/16 6 1/2 4.26 0.12 0.169 4.026 0.237 0.237
MFVE602-SEL11 5 5.563 7 5/16 8 1/2 5.295 0.134 0.186 5.047 0.258 0.258
MFVE602-SEL12 6 6.625 8 1/2 8 1/2 6.357 0.134 0.194 6.065 0.28 0.28
MFVE602-SEL13 8 8.625 10 5/8 8 1/2 8.329 0.148 0.218 7.981 0.322 0.322
MFVE602-SEL14 10 10.75 12 3/4 10 1/2 10.42 0.165 0.245 10.02 0.365 0.365
MFVE602-SEL15 12 12.75 15 10 1/2 12.39 0.18 0.26 12 0.375 0.375
MFVE602-SEL16 14 14 16 1/4 12 1/2 13.624 0.188 0.375 13.25 0.375 0.375
MFVE602-SEL17 16 16 18 1/2 12 1/2 15.624 0.188 0.375 15.25 0.375 0.375
MFVE602-SEL18 18 18 21 12 1/2 17.624 0.188 0.375 17.25 0.375 0.375
MFVE602-SEL19 20 20 23 12 1/2 19.564 0.218 0.375 19.25 0.375 0.375
MFVE602-SEL20 24 24 27 1/4 12 1/2 23.5 0.25 0.375 23.25 0.375 0.375
