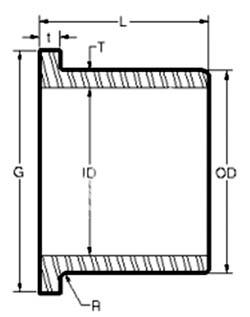

Product Name: Lap Joint Stud End Short Pattern
Product NO: Nom. Pipe Size (OD) Lap Dia. Length Type A Type B SCH 10S SCH 40S
ID Wall Thick (T) Lap Thick Inside Dia. Wall Thick Lap Thick
(in) (G) (L) (in) (in) (t) (ID) (T) (t)
MFVE601-SES01 1/2 0.84 1 3/8 2 1/8 1/32 0.674 0.083 0.095 0.622 0.109 0.109
MFVE601-SES02 3/4 1.05 1 11/16 2 1/8 1/32 0.884 0.083 0.097 0.824 0.113 0.113
MFVE601-SES03 1 1.315 2 2 1/8 1/32 1.097 0.109 0.12 1.049 0.133 0.133
MFVE601-SES04 1 1/4 1.66 2 1/2 2 3/16 1/32 1.442 0.109 0.124 1.38 0.14 0.14
MFVE601-SES05 1 1/2 1.9 2 7/8 2 1/4 1/32 1.682 0.109 0.126 1.61 0.145 0.145
MFVE601-SES06 2 2.375 3 5/8 2 1/2 5/16 1/32 2.157 0.109 0.13 2.067 0.154 0.154
MFVE601-SES07 2 1/2 2.875 4 1/8 2 1/2 5/16 1/32 2.635 0.12 0.156 2.469 0.203 0.203
MFVE601-SES08 3 3.5 5 2 1/2 3/8 1/32 3.26 0.12 0.161 3.068 0.216 0.216
MFVE601-SES09 3 1/2 4 5 1/2 3 3/8 1/32 3.76 0.12 0.165 3.548 0.226 0.226
MFVE601-SES10 4 4.5 6 3/16 3 7/16 1/32 4.26 0.12 0.169 4.026 0.237 0.237
MFVE601-SES11 5 5.563 7 5/16 3 7/16 1/16 5.295 0.134 0.186 5.047 0.258 0.258
MFVE601-SES12 6 6.625 8 1/2 3 1/2 1/2 1/16 6.357 0.134 0.194 6.065 0.28 0.28
MFVE601-SES13 8 8.625 10 5/8 4 1/2 1/16 8.329 0.148 0.218 7.981 0.322 0.322
MFVE601-SES14 10 10.75 12 3/4 5 1/2 1/16 10.42 0.165 0.245 10.02 0.365 0.365
MFVE601-SES15 12 12.75 15 6 1/2 1/16 12.39 0.18 0.26 12 0.375 0.375
MFVE601-SES16 14 14 16 1/4 6 1/2 1/16 13.624 0.188 0.375 13.25 0.375 0.375
MFVE601-SES17 16 16 18 1/2 6 1/2 1/16 15.624 0.188 0.375 15.25 0.375 0.375
MFVE601-SES18 18 18 21 6 1/2 1/16 17.624 0.188 0.375 17.25 0.375 0.375
MFVE601-SES19 20 20 23 6 1/2 1/16 19.564 0.218 0.375 19.25 0.375 0.375
MFVE601-SES20 24 24 27 1/4 6 1/2 1/16 23.5 0.25 0.375 23.25 0.375 0.375
