Magnet Lifter >> Permanent Magnet Lifter
Product Name
Permanent Magnet Lifter
Features:
1.Magnetic lifter's powerful energy come from high perfomance magnetic material-Neodymium magnets. It's small, strong and light, although it's self weight only dozens kilogram, but can liftTons material.
2.Special magnetic circuit design and thousands repeat & considerate test procedure ensure our equipment high saftey coefficient.

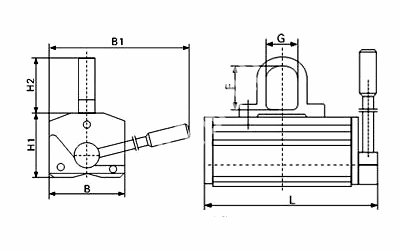

Product No. Rated lifting
strength(kg) 		Cylindrical lifting strength(kg) Max. pull-off strength(kg) L L1 B H1 H2 B1 F G Dead weight(kg)
MHAE0172-SP001 300 150 1050 203 165 87 89 68 223 45 38 10
MHAE0172-SP002 600 300 2100 266 226 112 109 89 287 58 45 21
MHAE0172-SP003 1000 500 3000 330 290 148 125 95 364 60 52 40
MHAE0172-SP004 1500 750 5250 385 330 178 145 118 447 70 65 65
MHAE0172-SP005 2000 1000 7000 470 420 178 145 118 487 70 65 83
