Magnet Lifter >> Universal Permanent Magnet Lifter
 |
 | ||||||||
|
Product Name |
Universal Permanent Magnet Lifter | ||||||||
|
Features: 1.Use to lift and transport steel and iron for factories, docks, warehouses, transportation. 2.Turning the manual Handle activates or turns off the magnet. 3.Turning the manual Handle activates or turns off the magnet. 4.makes it easy and safe to operate. Effective for long periods With no need for a power supply. | |||||||||

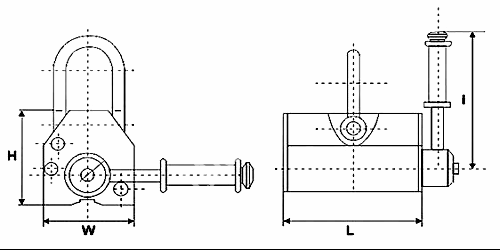

| Product No. | Rated lifting strength(kg) | Cylindrical lifting strength(kg) | Max. pull-off strength(kg) | W(mm) | L(mm) | H(mm) | I(mm) | Operation temperature (¡æ) | Dead weight(kg) |
| MHAE0172-UP001 | 100 | 50 | 350 | 62 | 92 | 67 | 126 | <80 | 3 |
| MHAE0172-UP002 | 300 | 150 | 1050 | 92 | 162 | 91 | 155 | <80 | 10 |
| MHAE0172-UP003 | 600 | 300 | 2100 | 122 | 232 | 117 | 196 | <80 | 24 |
| MHAE0172-UP004 | 1000 | 500 | 3500 | 176 | 258 | 163 | 285 | <80 | 50 |
| MHAE0172-UP005 | 2000 | 1000 | 7000 | 234 | 378 | 212 | 426 | <80 | 125 |
| MHAE0172-UP006 | 3000 | 1500 | 10500 | 286 | 458 | 261 | 521 | <80 | 220 |
| MHAE0172-UP007 | 6000 | 3000 | 19200 | 296 | 720 | 266 | 700 | <80 | 398 |
