Marine Window >> Shutter >> Steel Watertight Shutter without A Cover >> Steel Watertight Shutter without A Cover
  | |||||||

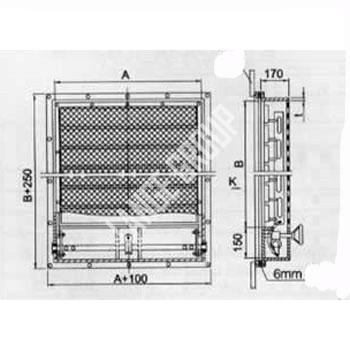

| Product Name | Steel Watertight Shutter without A Cover | ||||||
|
Specifications | |||||||
| Product No. | Nominal Size | Frame Size | t | Cutout Size | |||
| A*B | |||||||
| MOUE020-SA001 | 250*300 | 350*550 | 6 | 280*480 | |||
| MOUE020-SA002 | 300*400 | 400*650 | 6 | 330*580 | |||
| MOUE020-SA003 | 400*600 | 500*850 | 8 | 430*780 | |||
| MOUE020-SA004 | 600*800 | 700*1050 | 8 | 630*980 | |||
| MOUE020-SA005 | 800*1000 | 900*1250 | 10 | 830*1180 | |||
| MOUE020-SA006 | 900*1200 | 1000*1450 | 10 | 930*1380 | |||
| MOUE020-SA007 | 1000*1500 | 1100*1750 | 10 | 1030*1680 | |||
