Product Name |
Steel Non-Opening Jalousies | |||||||||
|
Specifications | ||||||||||
| Product No. | Nominal Size | Frame Size | r | l1 | l2 | l3 | b | b1 | b2 | Bolt Number |
| B*L | B1*L1 | |||||||||

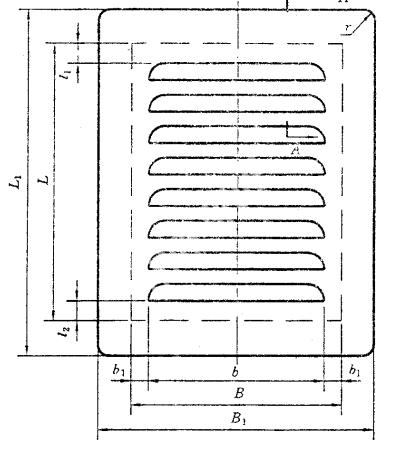

| MOUE020-SN001 | 200*300 | 260*360 | 5 | 20 | 15 | \ | 160 | 20 | \ | 20 |

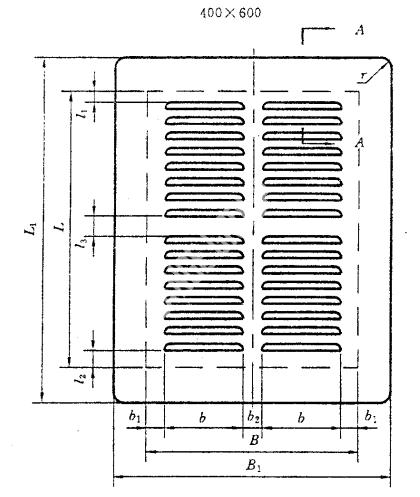

| MOUE020-SN002 | 400*600 | 460*660 | 15 | 35 | 160 | 40 | 32 | |||
| MOUE020-SN003 | 500*750 | 560*810 | 20 | 40 | 200 | 60 | 40 | |||
