Product Name |
Funnel Closable Shutter | |||||
|
Available Certificate |
ABS, BV, NK, LR, DNV, CCS, GL, KR, RS, RINA, IRS, etc. | |||||
|
Description |
Pneumatic shutter is also available | |||||
|
Specifications | ||||||

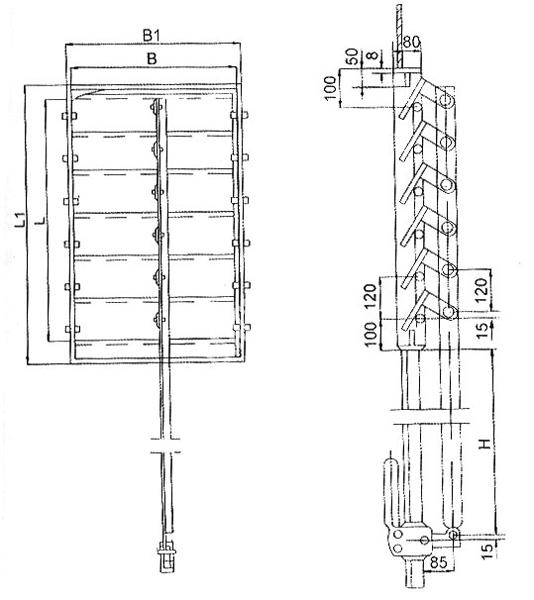

| Product No. | Nominal Size | Cutout Size | Shutter Board | |||
| B*H | B1*H1 | L*B*T | Quantity | |||
| MOUE020-CS001 | 400*580 | 416*680 | 396*160*4 | 5 | ||
| MOUE020-CS002 | 500*460 | 516*560 | 496*160*4 | 4 | ||
| MOUE020-CS003 | 500*700 | 516*800 | 6 | |||
| MOUE020-CS004 | 500*940 | 516*1040 | 8 | |||
| MOUE020-CS005 | 500*1180 | 516*1280 | 10 | |||
| MOUE020-CS006 | 500*1420 | 516*1520 | 12 | |||
