Product Name |
Aluminum Sliding Window | ||||||
|
Available Certification |
ABS, BV, NK, LR, DNV, CCS, GL, KR, RS, RINA, BIS etc. | ||||||
|
Specifications | |||||||

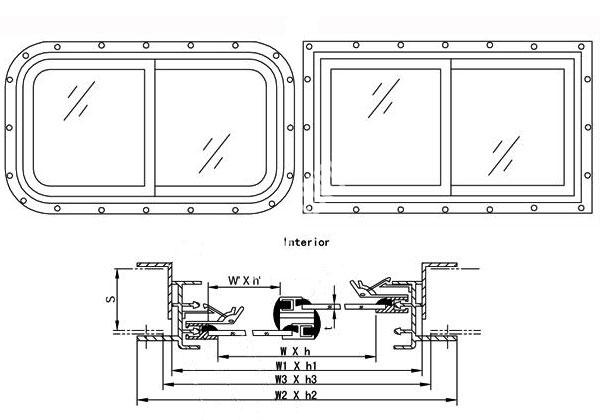

| Product No. | Nominal Size | Single-Leaf Size | Frame Size | Cutout Size | Decoration Thick | ||
| W*H | W¡ä*H¡ä | W1*H1 | W2*H2 | W3*H3 | R | S | |
| MOUE020-SW001 | 740*500 | 355*500 | 810*570 | 862*622 | 818*578 | 80 | For User's Option |
| MOUE020-SW002 | 830*560 | 400*560 | 900*630 | 952*682 | 908*638 | ||
| MOUE020-SW003 | 930*630 | 450*630 | 1000*700 | 1052*752 | 1008*708 | ||
| MOUE020-SW004 | 1030*630 | 500*630 | 1100*700 | 1152*752 | 1108*708 | ||
| MOUE020-SW005 | 1150*630 | 560*630 | 1220*700 | 1272*752 | 1228*708 | ||
| MOUE020-SW006 | 1035*710 | 500*710 | 1100*780 | 1152*832 | 1108*788 | ||
| MOUE020-SW007 | 1150*710 | 560*710 | 1220*780 | 1272*832 | 1228*788 | ||
| MOUE020-SW008 | 1150*800 | 560*800 | 1220*870 | 1272*922 | 1228*878 | ||
| MOUE020-SW009 | 1290*630 | 630*630 | 1360*700 | 1412*752 | 1368*708 | ||
| MOUE020-SW010 | 1450*630 | 710*630 | 1520*700 | 1572*752 | 1528*708 | ||
| MOUE020-SW011 | 1630*630 | 800*630 | 1700*700 | 1752*752 | 1708*708 | ||
