Product Name |
Non-Opening Welded Side Scuttle (Light) | ||||||||
Available Certificate |
ABS, BV, NK, LR, DNV, CCS, GL, KR, RS, RINA, BIS etc. | ||||||||
Description |
Meet IMO, SOLAS requirements | ||||||||
Used for side and rear-end of superstructure above the freeboard deck | |||||||||
Designed according to GB/T14413 and ISO1751 | |||||||||
Watertight, gastight | |||||||||
Material |
Steel, brass, aluminum | ||||||||
Glass Option |
Clear glass, frosted glass, fireproof glass | ||||||||
Specifications | |||||||||

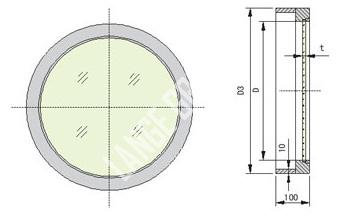

Product No. | Nominal Size (D) | D3 | t (Y1) | Cutout Size | |||||
MOUE020-WC007 | 200 | 250 | 6 | 253 | |||||
MOUE020-WC008 | 250 | 305 | 6 | 308 | |||||
MOUE020-WC009 | 300 | 360 | 8 | 363 | |||||
MOUE020-WC010 | 350 | 410 | 8 | 413 | |||||
MOUE020-WC011 | 400 | 460 | 10 | 463 | |||||
MOUE020-WC012 | 450 | 510 | 10 | 513 |
