Marine Communication System >> Internal Communication System >> General Emergency Alarm >> Marine Alarm Bell
| ||||||

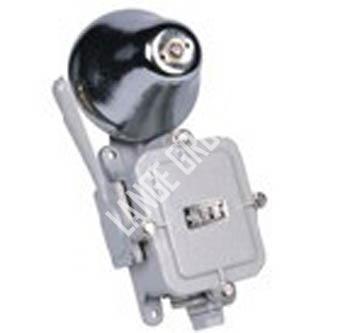

| Marine Alarm Bell | ||||||
| Product No: MMLE216-YZ | ||||||
| 1.Environment temperature: -25oC¡«+55oC | ||||||
| 2.Can reliably work when the power voltage varies with ¡À15% for DC current,-10%¡«+6% for AC current | ||||||
| of its rated voltage,and the sound pressure will be no less than stipulated £¦#118alue. | ||||||
| 3.Protecion class: IP 56 | ||||||
| Specification: | ||||||
| Name | Model | Voltage(V) | Current(A) | Sound Pressure Level(dB) | Weight | IP Class |
| DC Alarm Bell | YZ-24Z | 24V | 0.1A | 92dB | 2.7kg | IP 56 |
| YZ-110Z | 110V | 0.05A | ||||
| YZ-220Z | 220V | 0.03A | ||||
| AC Alarm Bell | YZ-24J | 24V | 0.15A | 82dB | 2.8kg | IP 56 |
| YZ-110J | 110V | 0.08A | ||||
| YZ-220J | 220V | 0.04A | ||||
