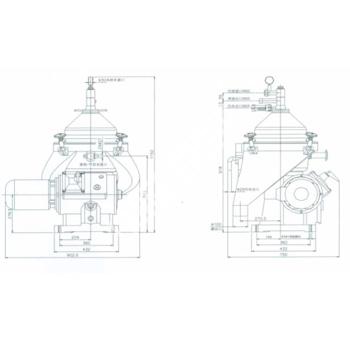

Product Name:Marine Disk Separator |
||||||||
Product NO.:MOHS201COS-203 |
||||||||
Structure: |
||||||||
The product mainly consists of blow,vertical axis,horizontal axis,machinery frame,speed detector,braking device,controlling valve and electromotor. |
||||||||
Feature: |
||||||||
The product is ring valve full slagging type and can continuously run |
||||||||
Technical Parameters |
||||||||
| Type | Rated Capacity | Discharge Type | Outlet Pressure | Motor Power | Weight | Demension | ||
| L/h | Mpa | Kw | Kg | L×B×H(mm) | ||||
| KYDH204SD-23 | 2000 | Automatic | ≥0.2 | 4 | 470 | 1370×1250×1150 | ||
Condition For Mineral Oil Separation And Actual Capacity |
||||||||
| Oil Type | Fuel Oil | Lubrication Oil | ||||||
| Fuel Oil | Heavy Fuel Oil | SAE30,40 | Detergency Oil | Steam Turbine Oil | ||||
| Kinematical Viscosity | 1.9-5.5 | 5.5-24 | 120 | 180 | 380 | 100-120 | 61.2-74.8 | |
| 40℃ | 50℃ | 40℃ | ||||||
| mm2/s | ||||||||
| density | <900 | 900-991 | 880-900 | <900 | ||||
| Kg/m3 20℃ | ||||||||
| Separate Temperature | 40-60 | 90-98 | 80-95 | |||||
| ℃ | ||||||||
| Recommended Capcity | 2400 | 2000 | 1100-1200 | 900-1000 | 700-800 | 1000-1200 | 500-600 | 1600-1700 |
| L/h | ||||||||
