Product Name:Marine Disk Separator |
||||||||
Product NO.:MOHS201COS-202 |
||||||||
Structure: |
||||||||
The product mainly consists of blow,vertical axis,horizontal axis,machinery frame,speed detector,braking device,controlling valve and electromotor. |
||||||||
Feature: |
||||||||
The product manual slagging type,easy to operate,convenient to dismantle and install. |
||||||||
Technical Parameters |
||||||||

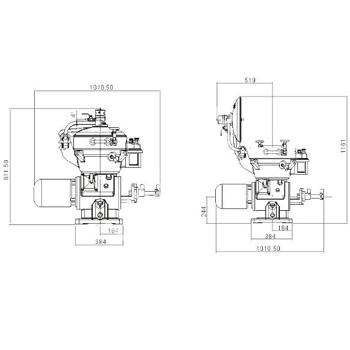

| Type | Rated Capacity | Rotate Speed | Discharge Type | Inlet Pressure | Output Pressure | Motor Power | Weight | Dimension |
| L/h | r/min | Mpa | Mpa | Kw | Kg | mm | ||
| AF-KYDR203DD-23 | 1500 | 8300 | manual | ≤0.05 | ≥0.2 | 4 | 313 | 1010×608×911 |
Condition For Mineral Oil Separation And Actual Capacity |
||||||||
| Oil Type | Fuel Oil | Lubrication Oil | ||||||
| Fuel Oil | Heavy Fuel Oil | Marine L.O | Steam Turbine Oil | |||||
| Kinematical Viscosity | 1.9-5.5 | 5.5-24 | 60 | 80 | 120 | 180 | 9.3-16.3 | 61.2-74.8 |
| 40℃ | 50℃ | 100℃ | 40℃ | |||||
| mm2/s | ||||||||
| Density | <900 | 900-991 | 880-900 | <900 | ||||
| Kg/m3 20℃ | ||||||||
| Separate Temperature | 20 | 40 | 75 | 80 | 90 | 98 | 80-95 | 75 |
| ℃ | ||||||||
| Recommended Capcity | 1950 | 1500 | 1050-1125 | 900-975 | 825-900 | 675-750 | 450-900 | 1200-1275 |
| L/h | ||||||||
