Marine Air Conditioning System >> Marine Self-contained Air Conditioning >> Marine Explosion Proof Split Air Conditioner
 |
 |
 |
|||||||||||
Product Name |
Marine Explosion Proof Split Air Conditioner |
||||||||||||
Product NO. |
MACS032-KP |
||||||||||||
Specifications |
|||||||||||||
Model Item |
KP003 |
KP005 |
KP006 |
KP008 |
KP009 |
KP010 |
KP011 |
KP012 |
KP013 |
KP014 |
KP015 |
||
Cooling Capacity |
kW |
3 |
5 |
6 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
|
Heating Capacity |
kW |
≤1.8 |
≤3 |
≤3.6 |
≤4.8 |
≤5.4 |
≤6 |
≤6.6 |
≤7.2 |
≤7.8 |
≤8.4 |
≤9 |
|
Cooling Medium |
R134a R404A R407C |
||||||||||||
Heating Type |
Electric heating tube with stainless steel fin or light tube |
||||||||||||
Explosion proof grade |
Exdemb ⅡB74 |
||||||||||||
Power Supply |
Main Circuit |
AC 380V 3P 50Hz/AC 440V 3P 60Hz |
|||||||||||
Control Circuit |
AC 220V 1P 50Hz |
||||||||||||
Protection Devices |
Freon high pressure,freon low pressure,super heat,lack phase,overload |
||||||||||||
Compressor |
Type |
Hermetic |
|||||||||||
Motor power |
kW |
1.8 |
1.9 |
2.3 |
3 |
3.3 |
3.7 |
4 |
4.2 |
4.8 |
5.2 |
5.5 |
|
Evaporator type |
Copper tue with copper fin |
||||||||||||
Indoor unit fan |
Type |
Low noise centrifugal explosion proof fan |
|||||||||||
Air flow |
m3/h |
650 |
850 |
1000 |
1400 |
1550 |
1700 |
1900 |
2100 |
2200 |
2400 |
2600 |
|
Motor power |
kW |
60 |
370 |
370 |
370 |
370 |
370 |
370 |
370 |
370 |
370 |
370 |
|
Cooling fan of outdoor unit |
Type |
Low nosie axial explosion proof fan |
|||||||||||
Air flow |
m3/h |
2000 |
2800 |
3300 |
4400 |
5000 |
5500 |
6000 |
6600 |
7200 |
7700 |
8200 |
|
Motor power |
kW |
0.55 |
0.55 |
0.55 |
0.55 |
0.55 |
0.55 |
0.75 |
0.75 |
0.55x2 |
0.55x2 |
0.55x2 |
|
Dia.of indoor/outdoor unit liquid pipe |
mm |
Φ10x1 |
Φ10x1 |
Φ10x1 |
Φ12x1 |
Φ12x1 |
Φ12x1 |
Φ12x1 |
Φ12x1 |
Φ12x1 |
Φ12x1.5 |
Φ12x1.5 |
|
Dia.of indoor/outdoor unit return gas pipe |
mm |
Φ12x1 |
Φ19x1 |
Φ19x1.5 |
Φ19x1.5 |
Φ19x1.5 |
Φ19x1.5 |
Φ19x1.5 |
Φ19x1.5 |
Φ19x1.5 |
Φ19x1.5 |
Φ19x1.5 |
|
Connection pipe length of indoor and outdoor unit |
mm |
≤12000 |
|||||||||||
Dimession |
Indoor unit |
mm |
700x480x1600 |
850x480x1750 |
850x480x1783 |
910x480x1783 |
950x480x1783 |
1100x480x1783 |
|||||
Outdoor unit |
mm |
1030x460x870 |
1100x480x945 |
1130x480x950 |
1250x480x950 |
1250x480x1150 |
1300x480x1150 |
1360x480x1250 |
1340x480x1250 |
1250x500x1250 |
1350x520x1300 |
1250x520x1300 |
|
Indoor unit weight |
kg |
250 |
280 |
290 |
290 |
300 |
310 |
325 |
335 |
340 |
365 |
370 |
|
Outdoor unit weight |
kg |
240 |
280 |
290 |
310 |
320 |
370 |
380 |
410 |
420 |
440 |
450 |
|
Indoor unit noise |
dB(A) |
≤60 |
≤63 |
≤63 |
≤64 |
≤65 |
≤65 |
≤65 |
≤65 |
≤68 |
≤68 |
≤66 |
|
Outdoor unit noise |
dB(A) |
≤72 |
≤73 |
≤73 |
≤73 |
≤73 |
≤75 |
≤75 |
≤75 |
≤76 |
≤76 |
≤76 |
|

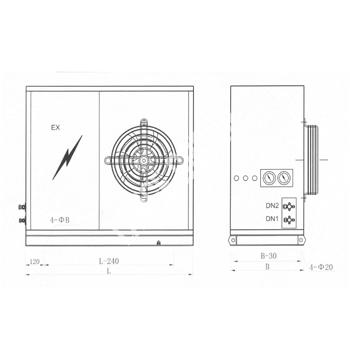

Outdoor unit dimession |
L |
mm |
1030 |
1100 |
1130 |
1250 |
1250 |
1300 |
1300 |
1340 |
1250 |
1350 |
1250 |
B |
mm |
460 |
480 |
480 |
480 |
480 |
480 |
480 |
480 |
500 |
520 |
520 |
|
H |
mm |
870 |
945 |
950 |
975 |
1150 |
1150 |
1250 |
1250 |
1250 |
1300 |
1300 |
|
DN1 |
DN8 |
DN8 |
DN8 |
DN8 |
DN8 |
DN10 |
DN10 |
DN10 |
DN10 |
DN10 |
DN10 |
||
DN2 |
DN10 |
DN16 |
DN16 |
DN16 |
DN16 |
DN16 |
DN16 |
DN16 |
DN16 |
DN16 |
DN16 |
||

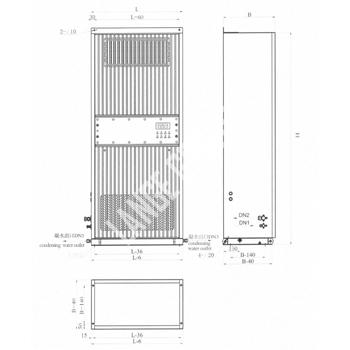

Indoor unit dimession |
L |
mm |
700 |
700 |
850 |
850 |
850 |
850 |
910 |
910 |
910 |
950 |
1100 |
B |
mm |
480 |
480 |
480 |
480 |
480 |
480 |
480 |
480 |
480 |
480 |
480 |
|
H |
mm |
1600 |
1600 |
1750 |
1750 |
1783 |
1783 |
1783 |
1783 |
1783 |
1783 |
1783 |
|
DN1 |
DN8 |
DN8 |
DN8 |
DN8 |
DN8 |
DN10 |
DN10 |
DN10 |
DN10 |
DN10 |
DN10 |
||
DN2 |
DN10 |
DN16 |
DN16 |
DN16 |
DN16 |
DN16 |
DN16 |
DN16 |
DN16 |
DN16 |
DN16 |
||
DN3 |
DN15 |
DN15 |
DN15 |
DN15 |
DN15 |
DN15 |
DN15 |
DN15 |
DN15 |
DN15 |
DN15 |
||
