Marine Window >> Side Scuttle >> Opening Side Scuttle >> Opening Welded Side ScuttleLeft/Right Opening Welded Side Scuttle (Heavy)
  | ||||||||||
|
Product Name |
Left/Right Opening Welded Side Scuttle (Heavy) | |||||||||
|
Available Certificate |
ABS, BV, NK, LR, DNV, CCS, GL, KR, RS, RINA, BIS etc. | |||||||||
|
Description |
Meet IMO, SOLAS requirements | |||||||||
|
Used below bulkhead deck or freeboard deck and above the full-load waterline | ||||||||||
|
Designed according to GB/T14413 and ISO1751 | ||||||||||
|
Watertight, gastight | ||||||||||
|
Material |
Steel, brass, aluminum | |||||||||
|
Glass Option |
Clear glass, frosted glass, fireproof glass | |||||||||
|
Specifications | ||||||||||

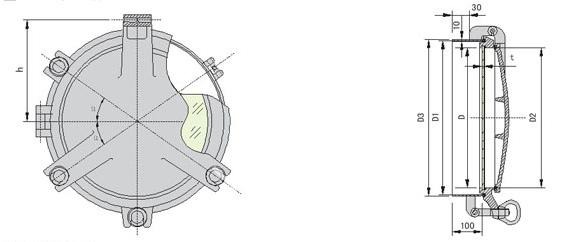

| Product No. | Nominal Size (D) | D1 | D2 | D3 | h | t (Y1) | a | Clip Quantity | Cutout Size | |
| Deadlight | Frame | |||||||||
| MOUE020-WA001 | 200 | 245 | 204 | 250 | 155 | 10 | 45กใ | 2 | 3 | 253 |
| MOUE020-WA002 | 250 | 295 | 254 | 305 | 182 | 12 | 42กใ | 308 | ||
| MOUE020-WA003 | 300 | 350 | 304 | 360 | 207 | 15 | 31กใ | 3 | 363 | |
| MOUE020-WA004 | 350 | 400 | 354 | 410 | 232 | 15 | 31กใ | 413 | ||
| MOUE020-WA005 | 400 | 450 | 404 | 460 | 257 | 19 | 31กใ | 463 | ||
