Marine Valves >> GB/T Marine Valves >> Check Valves >> PN2.5MPa Swing Check ValvePN 2.5MPa Swing Check Valve
Product Name PN 2.5MPa Swing Check Valve

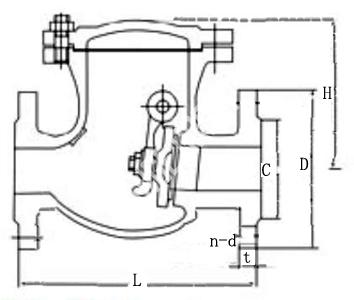

Product No DN L D C n-d t H
MFVEHK4-GB01 50 230 160 100 4-18 20 160
MFVEHK4-GB02 65 290 180 120 8-18 22 175
MFVEHK4-GB03 80 310 195 135 8-18 22 185
MFVEHK4-GB04 100 350 230 160 8-23 24 220
MFVEHK4-GB05 125 400 270 188 8-25 28 248
MFVEHK4-GB06 150 480 300 218 8-25 30 276
MFVEHK4-GB07 200 550 360 278 12-25 34 350
MFVEHK4-GB08 250 650 425 332 12-30 36 410
MFVEHK4-GB09 300 750 485 390 16-30 40 430
