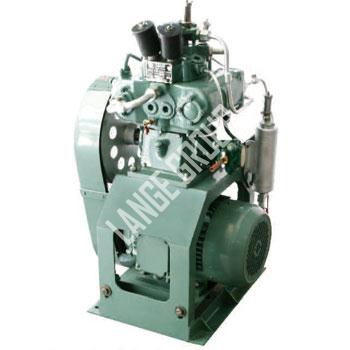

Marine Air Compressors >> Reciprocating Compressor >> Water-Cooled Air Compressor >> High Pressure CompressorWater Cooled Marine Reciprocating Air Compressor
 |
 |
||
| Product Name | HP Marine Reciprocating Air Compressor | ||
| Product No. | MCAS104-AC202(1-0.27/150) | ||
| Product Feature: | |||
| Cylinder Arrangement | Single Row Vertical Type | ||
| Stage | Three Stage Compression Piston Style | ||
| Cooled Type | Water Cooled | ||
| Discharge Capacity | 0.27-0.43 m3/min | ||
| Discharge Pressure | 6.0-19.6 Mpa | ||
| Main Technical Data and Specifications | |||
| Air Displacement (for suction stroke) | 0.27 m3/min | Rated Pressure | 14.7 Mpa |
| Suction Temperature of 1st stage | Not exceed 40 ℃ | Rotation Speed | 1000 r/min |
| Discharge Temperature of stages before cooler | Not exceed 200 ℃ | Piston Stroke | 40mm |
| Into the cylinder of air temperature | Not exceed 60 ℃ | Consumption of cooling water | 0.6 m3/h |
| Consumption of compressor lubricant | 50 g/h | Shaft horsepower | 7.5 KW |
| Weight of compressor(bed frame and motor are not included) | 80 Kg | Weight of the whole set | 270 Kg |
| Overall dimension(bed frame and motor are not included) (L¡ÁW¡ÁH) |

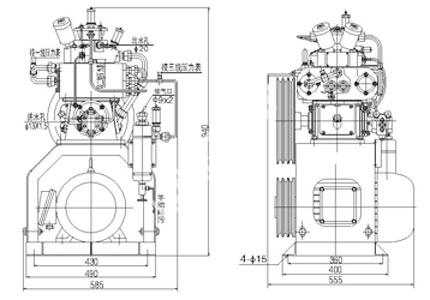

540¡Á490¡Á550mm | Outline Dimension of Compressor unit(L¡ÁW¡ÁH) | 555¡Á585¡Á940mm |
| Advantage | |||
| 4.1-0.27/150(MCAS104-AC202) model Marine air compressors is small and light, and has the characteristics of compact construction, high pressure, reliable running and easy operation. It is best applicinstrument and scientific research organizations. | |||
| Application | |||
| Main used for Defense area, Starting the main engine of ships and the work of water to breathe | |||
