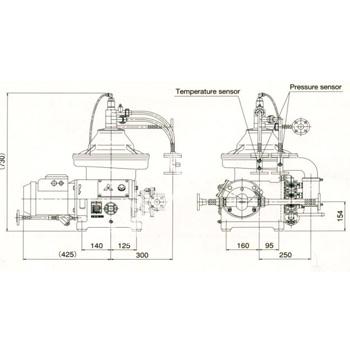

Product Name:Marine Oil Separator |
||||||
Product NO.:MOHS201COS-102 |
||||||
Features: |
||||||
Compact design realizes"Saving Energy&Space" |
||||||
Higher rotating speed of bowl achieves higher separation performance. |
||||||
Built-in Impeller pump |
||||||
Multi-monitor system integrated with detection and display functions |
||||||
Highly reliable G-HIDENS system. |
||||||
Technical Parameters |
||||||
| Model NO. | Actual capacity(L/H) | Electric Motor (Kw)(G/GH) | ||||
| Cross Head | Trunk Piston | |||||
| Detergent Oil | ||||||
| Viscosity | 100mm2/s/40℃ | 150mm2/s/40℃ | ||||
| Separat Temp. | MAX90℃ | MAX95℃ | ||||
| SJ10G/GH | 1250 | 1050 | 3.7/5.5 | |||
| 1350 | 1100 | |||||
| SJ20G/GH | 1950 | 1650 | 5.5/7.5 | |||
| 2050 | 1700 | |||||
| SJ30G/GH | 3550 | 2950 | 5.5/7.5 | |||
| 3750 | 3100 | |||||
| SJ50G/GH | 5450 | 4550 | 7.5/11.0 | |||
| 5500 | 4600 | |||||
| SJ60G/GH | 6350 | 5300 | 11.0/11.0 | |||
| 6400 | 5350 | |||||
| SJ70G/GH | 7750 | 6450 | 11.0/11.0 | |||
| 7750 | 6400 | |||||
| SJ100G/GH | 11200 | 9250 | 15.0/18.5 | |||
| 11300 | 9350 | |||||
| SJ120G/GH | 13000 | 10700 | 15.0/18.5 | |||
| 13100 | 10800 | |||||
| SJ150G/GH | 16300 | 13500 | 18.5/18.5 | |||
| 16200 | 13400 | |||||
Notez) Model G:Standard Model |
Upper:60HZ |
|||||
| GH:HIDENS Model |
Lower:50HZ |
|||||
| (Special model for partial discharge is option) |
||||||
SUCTION PUMP CAPACITY TABLE(L/H) |
||||||
| Model NO. | GP10G | GP20G | GP30G | GP50G | GP70G | GP100G |
| 60HZ | 1300 | 2100 | 3600 | 5700 | 8200 | 11600 |
| 50HZ | 1050 | 1750 | 3000 | 4750 | 6800 | 9650 |
