Marine Air Conditioning System >> Marine Self-contained Air Conditioning >> Marine Water Cooled Split Air Conditioner
 |
 |
 |
|||||||
Product Name |
Marine Water Cooled Split Air Conditioner |
||||||||
Product NO. |
MACS032-KF |
||||||||
Specifications |
|||||||||
Model Item |
KF003 |
KF004 |
KF005 |
KF006 |
KF007 |
KF008 |
KF010 |
||
Cooling Capacity |
kW |
3 |
4 |
5 |
6 |
7 |
8 |
10 |
|
Heating Capacity |
kW |
1.5 |
2 |
2.5 |
3 |
3.5 |
4 |
5 |
|
Cooling Medium |
R134a R404A R407C |
||||||||
Heating Type |
Electric heating tube with stainless steel fin or light tube |
||||||||
Power Supply |
Main Circuit |
AC 380V 3P 50Hz/AC 440V 3P 60Hz |
|||||||
Control Circuit |
AC 220V 1P 50Hz/AC 220V 1P 60Hz |
||||||||
Protection Devices |
Freon high pressure,freon low pressure,super heat,lack phase,overload |
||||||||
Compressor |
Type |
Hermetic |
|||||||
Motor power |
kW |
1.4 |
1.8 |
1.8 |
1.8 |
2 |
2.4 |
2.9 |
|
Condensor |
Type |
Horizontal shell and tube |
|||||||
Water inlet temp |
℃ |
≤32 |
|||||||
Water flow |
m3/h |
1.5 |
1.5 |
2.5 |
2.5 |
2.6 |
3 |
3.7 |
|
Water pressure loss |
kPa |
≤30 |
|||||||
Dia of inlet and outlet water |
mm |
DN25 |
DN25 |
DN25 |
DN25 |
DN25 |
DN25 |
DN25 |
|
Indoor unit fan |
Type |
Low noise centrifugal fan |
|||||||
Air flow |
m3/h |
600 |
800 |
1000 |
1200 |
1400 |
1600 |
2000 |
|
Motor power |
kW |
40 |
40 |
40 |
40 |
90 |
90 |
90 |
|
Evaporator Type |
Copper tue with copper fin |
||||||||
Dia.of indoor/outdoor unit liquid pipe |
mm |
p10x1 |
p10x1 |
p10x1 |
p10x1 |
p12x1 |
p12x1 |
p12x1 |
|
Dia.of indoor/outdoor unit return gas pipe |
mm |
p19x1.5 |
p19x1.5 |
p19x1.5 |
p19x1.5 |
p22x1.5 |
p22x1.5 |
p22x1.5 |
|
Connection pipe length of indoor and outdoor unit |
mm |
≤12000 |
|||||||
Dimession |
Indoor unit |
mm |
466x440x1750 |
||||||
Outdoor unit |
mm |
650x450x700 |
750x500x1000 |
850x500x1000 |
|||||
Indoor unit weight |
kg |
90 |
95 |
105 |
108 |
112 |
116 |
120 |
|
Outdoor unit weight |
kg |
165 |
165 |
190 |
195 |
210 |
220 |
240 |
|
Indoor unit noise |
dB(A) |
≤60 |
≤60 |
≤60 |
≤60 |
≤60 |
≤60 |
≤60 |
|
Outdoor unit noise |
dB(A) |
≤80 |
≤80 |
≤80 |
≤80 |
≤80 |
≤80 |
≤80 |
|

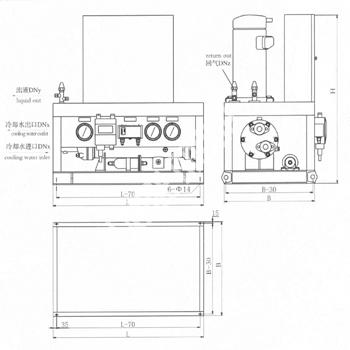

Outdoor unit dimession |
L |
mm |
650 |
650 |
650 |
750 |
750 |
850 |
850 |
B |
mm |
450 |
450 |
450 |
500 |
500 |
500 |
500 |
|
H |
mm |
700 |
700 |
700 |
1000 |
1000 |
1000 |
1000 |
|
DNx |
DN25 |
DN25 |
DN25 |
DN25 |
DN25 |
DN25 |
DN25 |
||
DNy |
DN8 |
DN8 |
DN8 |
DN8 |
DN10 |
DN10 |
DN10 |
||
DNz |
DN16 |
DN16 |
DN16 |
DN16 |
DN19 |
DN19 |
DN19 |
||

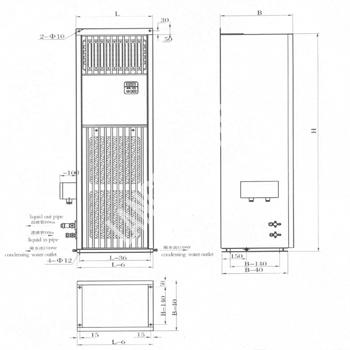

Indoor unit dimession |
L |
mm |
466 |
466 |
466 |
466 |
466 |
466 |
466 |
B |
mm |
440 |
440 |
440 |
440 |
440 |
440 |
440 |
|
H |
mm |
1750 |
1750 |
1750 |
1750 |
1750 |
1750 |
1750 |
|
DNf |
DN16 |
DN16 |
DN16 |
DN16 |
DN16 |
DN16 |
DN16 |
||
DNn |
DN8 |
DN8 |
DN8 |
DN8 |
DN10 |
DN10 |
DN10 |
||
DNm |
DN16 |
DN16 |
DN16 |
DN16 |
DN19 |
DN19 |
DN19 |
||
