Marine Air Conditioning System >> Marine Self-contained Air Conditioning >> Marine Cabinet Air Conditioner
 |
 |
||||||||||
Product Name |
Marine Cabinet Air Conditioner |
||||||||||
Product NO. |
MACS032-KC |
||||||||||
Specifications |
|||||||||||
Model Item |
KC006 |
KC008 |
KC010 |
KC011 |
KC014 |
KC017 |
KC022 |
KC027 |
KC033 |
||
Cooling Capacity |
kW |
5.81 |
8.14 |
10.46 |
11.6 |
14.4 |
17.44 |
22.6 |
27.4 |
33 |
|
Heating Capacity |
kW |
3 |
6 |
7.5 |
8 |
8.4 |
9 |
12 |
15 |
18 |
|
Cooling Medium |
R134a R404A R407C |
||||||||||
Heating Type |
Electric heating tube with stainless fin |
||||||||||
Power Supply |
Main Circuit |
AC 380V 3P 50Hz |
|||||||||
Control Circuit |
AC 220V 1P 50Hz |
||||||||||
Protection Devices |
High pressure, low pressure,water pressure,overload, fusible plug |
||||||||||
Compressor |
Type |
Hermetic |
|||||||||
Motor Power |
kW |
1.49 |
2.19 |
2.58 |
2.91 |
3.71 |
4.21 |
5.75 |
6.55 |
7.7 |
|
Condenser |
Type |
Horizontal shell and tube type, Aluminium-brass tube |
|||||||||
Water Inlet Temp |
℃ |
≤32 |
|||||||||
Cooling Water Flow |
m3/h |
2.2 |
2.7 |
3.3 |
3.5 |
4.3 |
5 |
7.5 |
9 |
12 |
|
Water Pressure Lose |
kPa |
30 |
|||||||||
Diameter Of Inlet And Outlet Water |
mm |
DN20 |
DN25 |
DN25 |
DN25 |
DN32 |
DN32 |
DN32 |
DN32 |
DN32 |
|
Evaporator Type |
Copper tue with copper fin |
||||||||||
Fan |
Type |
Low noise centrifugal fan |
|||||||||
Air Flow |
m3/h |
900 |
1400 |
1800 |
2000 |
2800 |
3000 |
3800 |
4200 |
4600 |
|
Motor Power |
W |
0.18 |
0.18 |
0.16 |
0.16 |
0.55 |
0.55 |
0.16x2 |
0.16x2 |
0.45x2 |
|

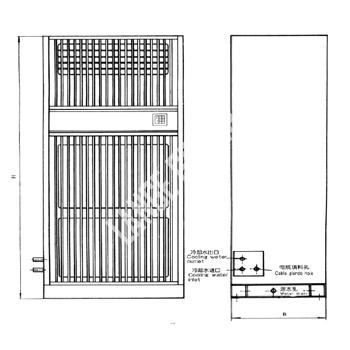

Dimension |
Length |
mm |
478 |
599 |
718 |
810 |
900 |
900 |
1100 |
1200 |
1300 |
Width |
mm |
440 |
490 |
490 |
500 |
535 |
540 |
560 |
600 |
600 |
|
Height |
mm |
1715 |
1750 |
1750 |
1750 |
1750 |
1750 |
1750 |
1750 |
1750 |
|
Weight |
kg |
240 |
270 |
310 |
320 |
360 |
400 |
480 |
490 |
520 |
|
