Product Name	Marine Vertical Floor Mounted Fan Coil Unit
Product NO.	MACS031-FP
Specifications
Model Item			FP005	FP006	FP007	FP008	FP012	FP015	FP023	FP028	FP035
Cooling Capacity		kW	5	6	7	8	12	15	23	28	35
Heating Capacity		kW	6	7	8	9	14	17	26	32	40
Namely Air Flow		m3/h	900	1,000	1,260	1,440	2,160	2700	3600	5000	5400
Cooling Medium Temperature Of Water Inlet			7℃ chilled water
Heating Medium Temperature Of Water Inlet			≥45℃ hot water
Refrigerant			R134A, R404A, R407C
Power Supply			220V 1P 60Hz/220V 1P 50Hz
Fan	Type		Low noise centrifugal fan
	Motor Power	kW	0.04	0.04	0.04	0.09	0.09	2x0.09	2x0.25	2x0.45	2x0.45
Air Cooler(heater)	Type		Low noise centrifugal fan
	Cold/hot water inlet temp	℃	7/45
	Water flow	m3/h	0.86	1.03	1.20	1.38	2.06	2.58	4.00	4.81	6.00
	Water pressure loss	kPa	35	35	40	40	40	45	45	50	55
Noise		dB(A)	≤48	≤49	≤50	≤52	≤54	≤57	≤64	≤69	≤69

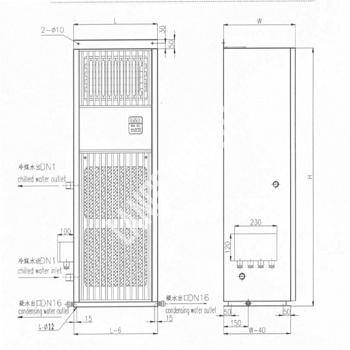

Dimension	L	mm	466	466	466	466	600	900	1200	1200	1500
	W	mm	440	440	440	440	440	440	500	500	600
	H	mm	1750	1750	1750	1750	1750	1750	1750	1750	1750
DN1			DN20	DN20	DN20	DN20	DN20	DN25	DN32	DN32	DN40
Weight		kg	105	108	110	115	135	180	210	230	290
