Marine Window >> Aluminum Window >> Aluminum Alloy Soundproof Window >> Aluminum Alloy Soundproof Window
  | |||||||||
|
Product Name |
Aluminum Alloy Soundproof Window (type A) | ||||||||
|
Available Certification |
ABS, BV, NK, LR, DNV, CCS, GL, KR, RS, RINA, BIS etc. | ||||||||
|
Description |
Meet IMO, SOLAS requirements | ||||||||
|
Designed according to ZBU26003 | |||||||||
|
Used for the cabin which needs soundproof, heat insulation and keeping temperature | |||||||||
|
Specifications | |||||||||

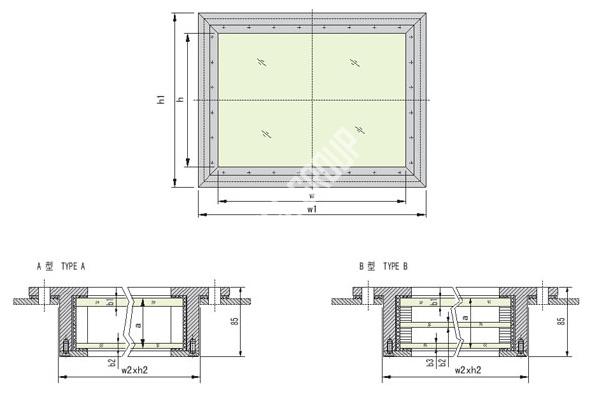

| Product No. | Nominal size | Frame size | Cutout Size | Glass Thick | Install Bolt | Soundproof | |||
| w*h | w1*h1 | w2*h2 | a | b1 | b2 | Quantity | Diameter | TL(Db) | |
| MOUE020-SP001 | 500*710 | 640*850 | 570*780 | 60 | 6 | 6 | 22 | M12 | ¡Ý31 |
| MOUE020-SP002 | 900*630 | 1040*770 | 970*700 | 6 | 26 | ¡Ý37.8 | |||
| MOUE020-SP003 | 1000*800 | 1140*940 | 1070*870 | 8 | 32 | ¡Ý35 | |||
| MOUE020-SP004 | 1200*800 | 1340*940 | 1270*870 | 8 | 34 | ¡Ý34 | |||
| MOUE020-SP005 | 1400*800 | 1540*940 | 1470*870 | 10 | 36 | ¡Ý33 | |||
| MOUE020-SP006 | 1600*1000 | 1740*1140 | 1670*1070 | 10 | 40 | ¡Ý32 | |||
| MOUE020-SP007 | 1800*1200 | 1940*1340 | 1870*1270 | 10 | 44 | ¡Ý30.5 | |||
|
Product Name |
Aluminum Alloy Soundproof Window (type B) | |||||||||
|
Specifications | ||||||||||
| Product No. | Nominal size | Frame size | Cutout Size | Glass Thick | Install Bolt | Soundproof | ||||
| w*h | w1*h1 | w2*h2 | a | b1 | b2 | b3 | Quantity | Diameter | TL(Db) | |
| MOUE020-SP008 | 500*710 | 640*850 | 570*780 | 60 | 6 | 6 | 6 | 22 | M12 | ¡Ý31.3 |
| MOUE020-SP009 | 900*630 | 1040*770 | 970*700 | 6 | 26 | |||||
| MOUE020-SP010 | 1000*800 | 1140*940 | 1070*870 | 8 | 32 | ¡Ý37.1 | ||||
| MOUE020-SP011 | 1200*800 | 1340*940 | 1270*870 | 8 | 34 | |||||
| MOUE020-SP012 | 1400*800 | 1540*940 | 1470*870 | 10 | 36 | ¡Ý36.6 | ||||
| MOUE020-SP013 | 1600*1000 | 1740*1140 | 1670*1070 | 10 | 40 | |||||
| MOUE020-SP014 | 1800*1200 | 1940*1340 | 1870*1270 | 10 | 44 | |||||
