Product Name	Marine Air Cooled Packaged Air Conditioning Plant
Product NO.	MACS030-BL
Specifications
Model Item			BL017	BL022	BL034	BL047	BL058	BL070	BL093	BL116	BL141	BL163	BL186



Cooling Capacity		kW	17	22.1	34.5	47.4	58	70	93	116	141	163	186
Heating Capacity		kW	15	20	30	40	50	60	80	90	120	140	160
Namely Air Volume		m3/h	2000	2400	3500	4500	5600	7500	8000	9200	12000	14000	16000
Outside Static Pressure		Pa	200	400	600	700	700	700	980	1500	1800	1800	1800
Cooling Medium			R404A,R407C,R507
Heating Medium			0.3-0.4 Mpa Saturated steam (or Electric heating)
Power Supply	Main Circuit		AC 380V 3P 50Hz
Power Supply	Control Circuit		AC 220V 1P 50Hz
Compressor	Type		Hermetic, Semi-hermertic piston
Compressor	Motor Power	kW	4.8	6.2	9.2	14.6	19.4	22	2x15	2x18.5	2x21.7	2x23.7	2x27.4
Fan	Type		Marine centrifugal fan
Fan	Motor Power	kW	0.55	1.5	3	5.5	5.5	5.5	7.5	11	15	15	15
Condenser	Air Volume Flow Rate	m3/h	2x4500	2x5000	2x7000	2x12000	2x17000	2x18000	2x22000	3x15000	4x16000	4x16000	4x17000
Condenser	Motor Power	kW	2x0.32	2x0.5	2x0.5	2x0.82	2x2.00	2x2.00	2x2.2	3x1.80	4x1.80	4x2.0	4x2.0
Evaporator Type			Copper tue with copper fin
Heater			Copper tue with copper fin(Steam heating) or Stainless stell tube/fin (Electric heating)
Protection Devices			High pressure,low pressure,(oil pressure),water pressure,overload,safety valve

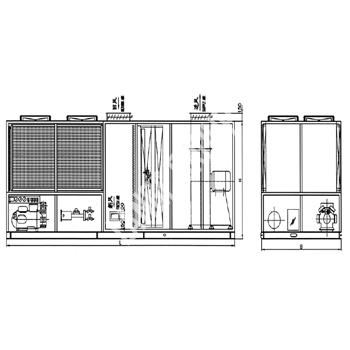

Dimension	Length	mm	1800	2200	2600	2600	2150	2300	3600	4300	4800	5200	6000
	Width	mm	1200	1500	1600	1800	1900	2350	1500	1800	2000	2000	2200
	Height	mm	1600	1700	1850	2000	2200	2000	2615	2400	2180	2200	2200
