Marine Direct Style Air Conditioner,Marine Air Conditioning Unit,Marine Central Air Conditioning System,Marine Air Conditioning System -Product Details















Product Name	Marine Direct Style Air Conditioner
Product NO.	MACS030-BF
Specifications
Model Item			BF023	BF035	BF046	BF058	BF070	BF081	BF093	BF104	BF116	BF151	BF186



Cooling Capacity		kW	23.2	34.9	46.4	58.1	69.8	81.4	93	104.6	116	151.2	186
Heating Capacity		kW	26.7	39.5	53.5	67	80	93	107	116.2	132.6	169.6	214
Namely Air Volume		m3/h	2180	3710	4240	5010	6310	7160	8200	8500	10500	12350	16100
Outside Static Pressure		Pa	440	540	700	1030	1180	1470	1560	1500	1470	1800	1760
Cooling Medium			R404A,R407C,R507
Heating Medium			0.3-0.4 Mpa Saturated steam (or Electric heating)
Heating Type			Electric heating tube with stainless fin
Power Supply	Main Circuit		AC 380V 3P 50Hz
Power Supply	Control Circuit		AC 220V 1P 50Hz
Fan	Type		Motor inline with the marine direct-driven centrifugal fan or belt-driven double centrifugal fan with double air inlet
Fan	Motor Power	kW	1.5	3	3	5.5	5.5	7.5	11	11	15	18.5	18.5
Heater	Type		Copper tube with copper fin
Heater	Steam consumption	kg/h	46	68	92	115	138	160	184	200	230	290	368
Humidifier	Type		Steam-sprayed
Humidifier	Steam consumption	kg/h	8	12	16	20	24	28	32	38	40	52	64
Evaporator Type			Copper tue with copper fin

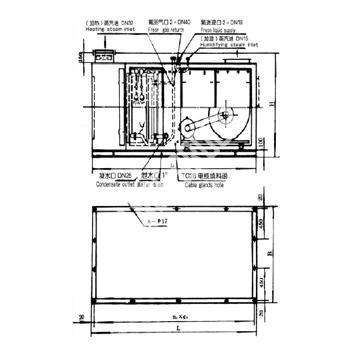

Dimension	Length	mm	1900	1900	1900	1950	1950	1950	2050	3550	3550	3700	3700
	Width	mm	1050	1050	1050	1320	1320	1320	1400	1450	1450	1600	1700
	Height	mm	1100	1100	1200	1355	1355	1355	1355	1655	1655	1900	2000
Weight		kg	450	580	720	800	860	1100	1200	1600	1600	1900	2300
