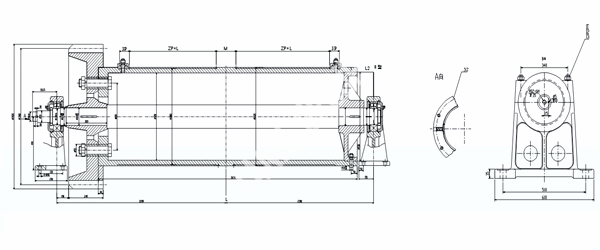

Crane Wheels >> ¦Õ800mm Crane Drum
Product Name ¦Õ800mm Crane Drum
Product Material Steel
Product No. D¡ÁL (t) (m) p m D1 L1 L2 I1 I2 H h d R m1¡Áz1
MHAE0166-DN001 ¦Õ1000¡Á3000 50 28 28 230 1016 87.5 100 70 70 460 30 26 578 10¡Á48
MHAE0166-DN002 ¦Õ1000¡Á2500 50 22 28 280 1016 87.5 100 70 35 420 35 26 578 10¡Á48
MHAE0166-DN003 ¦Õ1000¡Á2000 50 18 28 100 1016 87.5 100 70 35 420 35 26 578 10¡Á48
MHAE0166-DN004 ¦Õ1000¡Á2000 40 22 28 150 1016 87.5 100 70 35 420 35 26 580 10¡Á48
MHAE0166-DN005 ¦Õ1000¡Á2000 57 18 32 100 1018 40 300 125 50 500 50 46 589 10¡Á54
MHAE0166-DN006 ¦Õ1000¡Á3500 50 32 28 280 1016 87.5 100 70 35 420 35 26 578 10¡Á48
