Marine Valves >> ASME/ANSI/API Marine Valves >> Class150 Cast Steel Pressure Reducing Valve
 |
 | ||||||

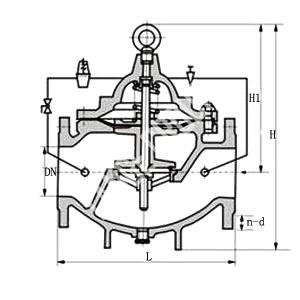

| Class150 Cast Steel Pressure Reducing Valve | |||||||
| Product No. | DN | L | n-d | H1 | H | ||
| PN10 | PN16 | PN25 | |||||
| MFVEJYC4-AN01 | 50 | 203 | 4-18 | 4-18 | 4-18 | 278 | 88 |
| MFVEJYC4-AN02 | 65 | 216 | 4-18 | 4-18 | 8-18 | 298 | 97 |
| MFVEJYC4-AN03 | 80 | 241 | 8-18 | 8-18 | 8-18 | 313 | 105 |
| MFVEJYC4-AN04 | 100 | 292 | 8-18 | 8-18 | 8-18 | 250 | 120 |
| MFVEJYC4-AN05 | 125 | 330 | 8-18 | 8-18 | 8-18 | 365 | 135 |
| MFVEJYC4-AN06 | 150 | 356 | 8-18 | 8-18 | 8-18 | 385 | 160 |
| MFVEJYC4-AN07 | 200 | 495 | 8-18 | 12-18 | 12-18 | 505 | 190 |
| MFVEJYC4-AN08 | 250 | 622 | 12-18 | 12-18 | 12-18 | 590 | 240 |
| MFVEJYC4-AN09 | 300 | 698 | 12-18 | 12-18 | 12-18 | 620 | 270 |
| MFVEJYC4-AN10 | 350 | 787 | 16-18 | 16-18 | 16-18 | 677 | 300 |
| MFVEJYC4-AN11 | 400 | 914 | 16-18 | 16-18 | 16-18 | 690 | 335 |
| MFVEJYC4-AN12 | 450 | 978 | 20-18 | 20-18 | 20-18 | 715 | 360 |
