Sewage Treatment Plant,Sewage Treatment Plant,Marine Sewage Treatment System -Product Details

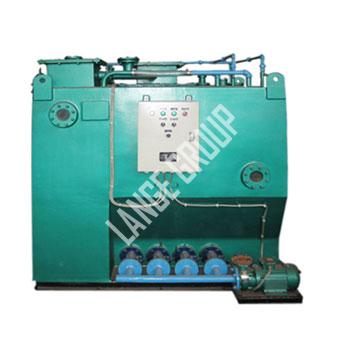

Product Name		Sewage Treatment Plant
Product No.		MEPE105-SE
Treatment Process		Biofilm Process
Type		MEPE105-SE1	MEPE105-SE2	MEPE105-SE3	MEPE105-SE4	MEPE105-SE5	MEPE105-SE6	MEPE105-SE7	MEPE105-SE8	MEPE105-SE9	MEPE105-SE10	MEPE105-SE11	MEPE105-SE12
Calorie Capacity	Average l/d	840	1540	2240	3080	3780	1180	5880	7416	10920	14640	18240	21700
	Peak l/h	105	193	380	385	473	560	735	927	1365	1830	2280	2712.5
	Organic Load kgBOD5/d	0.42	0.77	1.12	1.54	1.89	2.24	2.94	3.71	5.46	7.35	9.1	10.9
Source		AC380V50HHZ3
Airpump(Blower)	Model	Sliding Vane			Sliding Vane			L.C.			L.C.
	Calorie Capacity	10m3/h			25m3/h			1.05m3/min			2.2m3/min
	Pressure	4000mm-H2O			5000mm-H2O			3000mm-H2O			4000mm-H2O
	Speed	1380r/min			1410r/min			940r/min			1440r/min
	Motor Power	0.55kw			1.1kw			2.2kw			4kw
Cuttingpump	Model	Centrifugalwithblades						Centrifugalwithblades
	Calorie Capacity	5m3/h						10m3/h
	Pressure	0.1Mpa						0.1Mpa
	Speed	2820r/min						2820r/min
	Motor Power	1.1kw						1.5kw
Chemical Comsumption		0.036	0.066	0.096	0.132	0.162	0.192	0.252	0.318	0.468	0.63	0.78	0.93
Quality Of Effluent		SS<50mg/l,BOD<550mg/l,Colichin<250pcs/100ml,.PH6--9
Weight(t)	Dry	1.13	1.49	1.72	2.66	2.7	2.72	2.98	3.85	5.12	6.42	7.5	8.5
	Wet	2.08	3.28	4.36	6.14	8,17	8.36	9.58	10.85	15.48	21.13	27.8	36.28
