Crane Wheels >> Un-mounted Steel Crane Wheels
Product
Name		 Un-mounted Steel Crane Wheels
Product
Material		 Steel
Product
No.		 TREAD
DIA.
(IN)		 HUB
TYPE		 CAPACITY
PER WHEEL
(LBS)		 FOR MAX.
A.S.C.E
RAIL
 WGT.

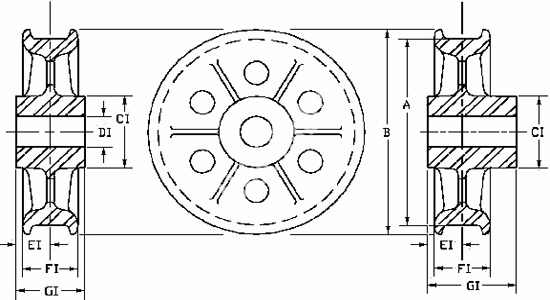

(LBS)		 DIMENSIONS IN INCHES
A B CI DI EI FI GI
MHAE092-US001 7-1/2 SHORT 8,000 30 36 7-1/2 8-3/4 4-1/4 1-13/16 3-1/8 3-5/8
MHAE092-US002 7-1/2 LONG 8,000 30 42 7-1/2 8-3/4 4-1/4 1-13/16 3-1/8 5-1/8
MHAE092-US003 9 SHORT 10,000 35 47 9 10-1/2 4-3/4 1-13/16 3-1/8 3-5/8
MHAE092-US004 9 LONG 10,000 35 51 9 10-1/2 4-3/4 1-13/16 3-1/8 5-1/8
MHAE092-US005 10 SHORT 12,000 50 81 10 11-1/2 5-1/2 2-1/8 3-3/4 4-1/4
MHAE092-US006 10 LONG 12,000 50 90 10 11-1/2 5-1/2 2-1/8 3-3/4 5-3/4
MHAE092-US007 10-1/2 SHORT 12,000 40 63 10-1/2 11-3/4 5-1/4 1-15/16 3-3/8 3-7/8
MHAE092-US008 10-1/2 LONG 12,000 40 71 10-1/2 11-3/4 5-1/4 1-15/16 3-3/8 5-3/8
MHAE092-US009 12 SHORT 12,500 40 73 12 13-1/4 5-1/2 1-15/16 3-3/8 3-7/8
MHAE092-US010 12 LONG 12,500 40 81 12 13-1/4 5-1/2 1-15/16 3-3/8 5-5/8
MHAE092-US011 12 SHORT 15,000 60 97 12 13-1/2 5-1/2 2-5/16 4-1/8 4-5/8
MHAE092-US012 12 LONG 15,000 60 106 12 13-1/2 5-1/2 SEE 2-5/16 4-1/8 6-3/8
MHAE092-US013 15 SHORT 17,500 50 115 15 16-1/2 5-7/8 NOTE 2-3/16 3-7/8 4-3/8
MHAE092-US014 15 LONG 17,500 50 125 15 16-1/2 5-7/8 ABOVE 2-3/16 3-7/8 6-3/8
MHAE092-US015 15 SHORT 20,000 70 150 15 16-1/2 5-3/4 2-3/8 4-1/4 4-3/4
MHAE092-US016 15 LONG 20,000 70 160 15 16-1/2 5-3/4 2-3/8 4-1/4 6-3/4
MHAE092-US017 18 SHORT 30,000 70 185 18 19-1/2 7 2-3/8 4-1/4 4-3/4
MHAE092-US018 18 LONG 30,000 70 206 18 19-1/2 7 2-3/8 4-1/4 7
MHAE092-US019 21 SHORT 50,000 80 321 21 22-3/4 9-1/4 2-13/16 5 5-5/8
MHAE092-US020 21 LONG 50,000 80 363 21 22-3/4 9-1/4 2-13/16 5 8-1/8
MHAE092-US021 24 SHORT 70,000 100 442 24 25-3/4 9-1/2 2-15/16 5-1/4 5-7/8
MHAE092-US022 24 LONG 70,000 100 464 24 25-3/4 9-1/2 2-15/16 5-1/4 8-5/8
  1. Note:
    Suitable for all types of power driven cranes.
  2. Wheels may be adapted to any style of mounting and fitted With any type of bearing.
