Marine Valves >> ASME/ANSI/API Marine Valves >> Ball Valves >> Class 150 Cast Steel Ball ValveClass 150 Cast Steel Ball Valve
 |
 | ||||||
| Product Name | Class 150 Cast Steel Ball Valve | ||||||

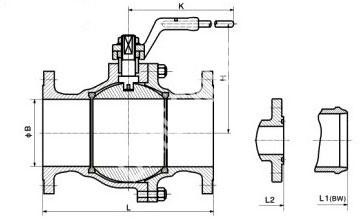

| Product No. | Size(inch) | L-RF(mm) | L1-BW(mm) | L2-FTJ(mm) | B(mm) | H(mm) | K(mm) |
| MFVEQC4-ANO1 | 1/2 | 108 | 140 | - | 13 | 65 | 150 |
| MFVEQC4-ANO2 | 3/4 | 117 | 152 | - | 19 | 70 | 155 |
| MFVEQC4-ANO3 | 1 | 127 | 165 | 140 | 25 | 80 | 160 |
| MFVEQC4-ANO4 | 1 1/2 | 165 | 190 | 178 | 38 | 95 | 180 |
| MFVEQC4-ANO5 | 2 | 178 | 216 | 191 | 51 | 110 | 200 |
| MFVEQC4-ANO6 | 2 1/2 | 191 | 241 | 203 | 64 | 135 | 225 |
| MFVEQC4-ANO7 | 3 | 203 | 283 | 216 | 76 | 145 | 325 |
| MFVEQC4-ANO8 | 4 | 229 | 305 | 241 | 102 | 170 | 350 |
| MFVEQC4-ANO9 | 5 | 394 | 457 | 406 | 152 | 235 | 500 |
| MFVEQC4-ANO10 | 8 | 457 | 521 | 470 | 203 | 275 | 600 |
