Marine Valves >> ASME/ANSI/API Marine Valves >> Ball Valves >> 600PSI Bronze Ball Valve600PSI Bronze Ball Valve

Product Name 600PSI Bronze Ball Valve

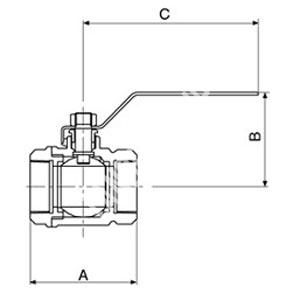

Nominal Size DN A B C
Product No. mm inch mm inch mm inch mm inch
MFVEQB1-AN01 10 3/8 49 1-7/8 40 1-9/16 80 3-1/8
MFVEQB1-AN02 15 1/2 54 2-1/8 47 1-7/8 80 3-1/8
MFVEQB1-AN03 20 3/4 60 2-3/8 50 1-15/16 82 3-1/4
MFVEQB1-AN04 25 1 72 2-13/16 59 2-5/16 102 4
MFVEQB1-AN05 32 1-1/4 80 3-1/8 68 2-11/16 131 5-3/16
MFVEQB1-AN06 40 1-1/2 93 3-11/16 72 2-13/16 131 5-3/16
MFVEQB1-AN07 50 2 110 4-5/16 90 3-9/16 153 6
MFVEQB1-AN08 65 2-1/2 135 5-5/16 121 4-3/4 225 8-7/8
MFVEQB1-AN09 80 3 149 5-7/8 133 5-1/4 277 10-7/8
MFVEQB1-AN10 100 4 174 6-7/8 158 6-1/4 277 10-7/8
