Marine Door >> Fire Door >> Class A Fire Door >> A0 Fire DoorWeathertight Gastight A0 Fire Door(Type A)
Product Name
Weathertight Gastight A0 Fire Door(Type A)
Description
Meet IMO, SOLAS requirements
Light and easy operation
Available in natural finish, primed or coated in accordance with client request
Application
SuiTABLE for bulkhead with A0 fireproof, weathertight and gastight requirements.
Material
Steel
Open Side
OL
Option
A60 fire proof, Double door-leaf
Available Certificate
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc

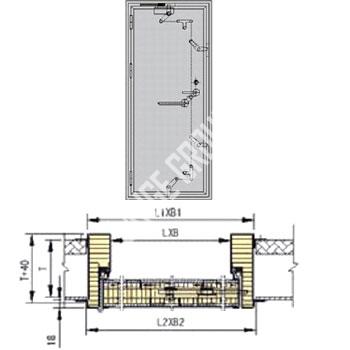

Specifications
Door Leaf Product No. Nominal Size Size of Frame Cutout in Steel Wall Weight
B¡ÁL B1¡ÁL1 B2¡ÁL2 kg
Single MOUE010-AE001 600¡Á1600 700¡Á1700 705¡Á1705 65
MOUE010-AE002 650¡Á1650 750¡Á1750 755¡Á1755 70
MOUE010-AE003 700¡Á1700 800¡Á1800 805¡Á1805 75
MOUE010-AE004 800¡Á1750 900¡Á1850 905¡Á1855 80
Double MOUE010-AE005 1000¡Á1600 1100¡Á1700 1105¡Á1705 108
MOUE010-AE006 1100¡Á1650 1200¡Á1750 1255¡Á1755 115
MOUE010-AE007 1300¡Á1700 1400¡Á1800 1455¡Á1805 136
MOUE010-AE008 1600¡Á1750 1700¡Á1850 1705¡Á1855 156
Sizes and colors will customize according to your requirements
