Wire Rope Sheaves >> Sheaves With Bronze Bushing
Product Name Sheaves With Bronze Bushing
Product Material Steel
Product No. Wire
(mm)		 Dimensions (mm) Bearing Material Weight
(kg)

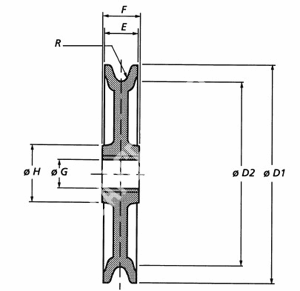

D1 D2 E F G H R
MHAE085-SH001 22 250 195 50 60 60 120 12 Bronze GGG-60 12
MHAE085-SH002 24 300 250 55 60 70 130 13 Bronze GGG-70 15
MHAE085-SH003 26 350 305 70 75 70 150 14 Bronze GGG-70 20
MHAE085-SH004 28 400 345 75 80 80 180 15 Bronze GGG-70 32
MHAE085-SH005 32 450 390 75 85 80 190 17 Bronze GGG-70 48
MHAE085-SH006 36 500 430 90 100 100 225 19.5 Bronze GGG-60 80
MHAE085-SH007 40 550 480 100 120 120 220 21.5 Bronze GGG-60 80

1. Different shaft sizes possible.
2. Groove may be adjusted to other Wire rope diameters.
