Marine Pipe Fitting >> Branch >> Carbon Steel >> 45 Degree Oblique Branch

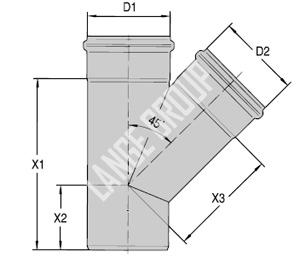

Product Name 45 Degree Oblique Branch
Product No. D1 D2 X1 X2 X3 Weight(kg)
MFVE609-OB001 50 50 128 57 76 0.3
MFVE609-OB002 75 50 144 56 94 0.5
MFVE609-OB003 75 75 179 74 110 0.6
MFVE609-OB004 110 50 147 42 119 0.7
MFVE609-OB005 110 75 182 60 135 0.9
MFVE609-OB006 110 110 233 88 149 1.2
MFVE609-OB007 125 75 200 65 141 1.2
MFVE609-OB008 125 110 250 90 154 1.3
