Product Name |
Gastight A0 Fire Door | ||||||||||
|
Description |
Meet IMO, SOLAS requirements | ||||||||||
|
Light and easy operation, weather tight | |||||||||||
|
Available in natural finish, primed or coated in accordance with client request | |||||||||||
|
Application |
Apply to engine room and carbo dioxide room | ||||||||||
|
Material |
Steel/Aluminum/Stainless Steel | ||||||||||
|
Option |
A60 fire proof | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||
| Specifications | |||||||||||
| Product No. | Size | Weight Kg | |||||||||

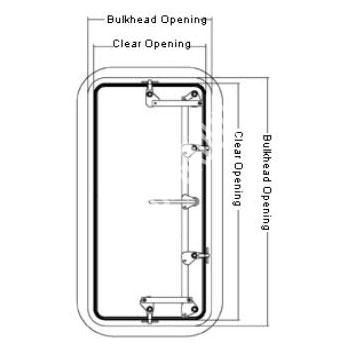

| Doorway LXB | Frame L1XB1 | Wall Opening L2XB2 | A0 | A60 | |||||||
| MOUE010-AC001 | 1600กม600 | 1700กม700 | 1705กม705 | 65 | 118 | ||||||
| MOUE010-AC002 | 1650กม650 | 1750กม750 | 1755กม755 | 70 | 128 | ||||||
| MOUE010-AC003 | 1700กม700 | 1800กม800 | 1805กม805 | 75 | 142 | ||||||
| MOUE010-AC004 | 1750กม800 | 1850กม900 | 1855กม905 | 80 | 149 | ||||||
| Sizes and colors will customize according to your requirements | |||||||||||
