Wire Rope Sheaves >> Sheaves With Cylindrical Roller
Product Name Sheaves With Cylindrical Roller
Product Material Steel
Product No. Wire
(mm)		 Dimensions (mm) Bearing ?Material Weight
(kg)

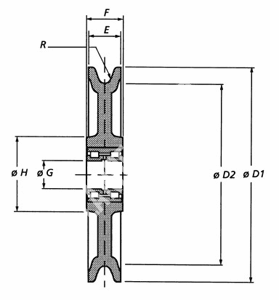

D1 D2 E F G H R
MHAE084-SY001 34 550 480 70 80/54 70 170 18 NNF 5014 GGG-70 55
MHAE084-SY002 20 560 482 62 67 90 200 11 NNF 5018 GGG-50 38.7
MHAE084-SY003 25 570 500 59 67 90 200 13.5 NNF 5018 GGG-50 38.7
MHAE084-SY004 24 595 528 61 67 90 200 13 NNF 5018 GGG-50 48.7
MHAE084-SY005 25 595 528 75 80 120 270 13.5 NNF 5024 GGG-50 55.2
MHAE084-SY006 36 600 520 85 105/60 80 190 19 NNF 5016 GGG-70 80
MHAE084-SY007 27 650 575 75 80 100 280 14 NNF 5022 GGG-50 55.5
MHAE084-SY008 27 650 575 72 80 120 280 14 NNF 5024 GGG-50 64
MHAE084-SY009 38 665 560 100 110 100 210 20.5 NNF 5020 GGG-70 110
MHAE084-SY010 30 710 630 70 80 110 230 16 NNF 5022 GGG-50 66.5
MHAE084-SY011 32 710 630 70 80 120 230 17 NNF 5024 GGG-50 92
MHAE084-SY012 40 710 630 85 110/80 120 260 21.5 NNF 5024 GGG-70 125
MHAE084-SY013 36 800 710 72 80 110 230 18 NNF 5022 GGG-50 86.5
MHAE084-SY014 38 800 710 72 80 120 230 20 NNF 5024 GGG-50 87
MHAE084-SY015 36 800 710 78 95 130 230 18 NNF 5026 GGG-50 94
MHAE084-SY016 44 810 710 98 100 150 270 23.5 NNF 5030 GGG-60 190
MHAE084-SY017 38 860 760 85 95 130 300 20 NNF 5026 GGG-50 100
MHAE084-SY018 38 860 760 85 100 150 300 20 NNF 5030 GGG-50 103
MHAE084-SY019 30 890 800 70 80 110 270 16 NNF 5022 GGG-50 102.5
MHAE084-SY020 30 890 800 70 80 120 270 16 NNF 5024 GGG-50 103
MHAE084-SY021 38 890 800 75 95 130 270 20 NNF 5026 GGG-50 106
MHAE084-SY022 38 890 800 85 100 150 270 20 NNF 5030 GGG-50 128
MHAE084-SY023 42 920 800 100 109 160 330 22 NNF 5032 GGG-60 215
MHAE084-SY024 46 1020 890 110 122 170 400 24.5 NNF 5034 GGG-60 300

1. Different shaft sizes possible.
2. Groove may be adjusted to other Wire rope diameters.
