Wire Rope Sheaves >> Sheaves With Ball Bearings
 |
 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Name | Sheaves With Ball Bearings | ||||||||||
| Product Material | Steel | ||||||||||
| Product No. |
Wire (mm) |
Dimensions (mm) | Bearing | ?Material |
Weight (kg) | ||||||

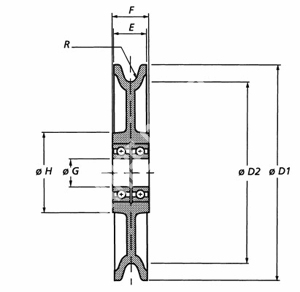

| D1 | D2 | E | F | G | H | R | |||||
| MHAE082-SB001 | 8 | 100 | 80 | 18 | 20 | 15 | 40 | 4.5 | 2x6002-RS | GGG-60 | 0.7 |
| MHAE082-SB002 | 10 | 125 | 105 | 23 | 27.5 | 22 | 55 | 5.5 | 2x60/22-RS | GGG-60 | 1.5 |
| MHAE082-SB003 | 12 | 150 | 120 | 36 | 40 | 30 | 80 | 6.5 | 2x6206-RS | GGG-60 | 3 |
| MHAE082-SB004 | 12 | 150 | 120 | 36 | 40 | 30 | 80 | 6.5 | 2x6206-RS | GGG-70 | 3 |
| MHAE082-SB005 | 14 | 200 | 165 | 36 | 40 | 30 | 80 | 7.5 | 2x6206-RS | GGG-60 | 4.5 |
| MHAE082-SB006 | 18 | 250 | 210 | 40 | 45 | 35 | 90 | 9.5 | 2x6207-RS | GGG-70 | 8 |
| MHAE082-SB007 | 20 | 300 | 255 | 45 | 50 | 40 | 100 | 11 | 2x6208-RS | GGG-70 | 12 |
| MHAE082-SB008 | 22 | 350 | 305 | 45 | 50 | 45 | 115 | 12 | 2x6209-RS | GGG-70 | 17 |
| MHAE082-SB009 | 24 | 400 | 345 | 55 | 60 | 50 | 130 | 13 | 2x6210-RS | GGG-70 | 24 |
|
1. Different shaft sizes possible. | |||||||||||
