Product Name |
Glazed Hinged B30 Fire Door | ||||||||||
|
Description |
Meet IMO, SOLAS requirements | ||||||||||
|
Light and easy operation, passed standard fire test | |||||||||||
|
Available in natural finish, primed or coated as customer's requirements | |||||||||||
|
Application |
For interior use | ||||||||||
|
Max. Size |
800x2000mm | ||||||||||
|
Door Leaf |
3mm painted mild steel/stainless steel | ||||||||||
|
Door Frame |
4mm painted mild steel/stainless steel, L or Z shaped | ||||||||||
|
Hinges |
Stainless steel | ||||||||||
|
Option |
Double door leaf | ||||||||||
|
A60 fireproof with 40mm glass thickness | |||||||||||
|
Sound reduction quality up to 38dB | |||||||||||
|
Gastight function | |||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||

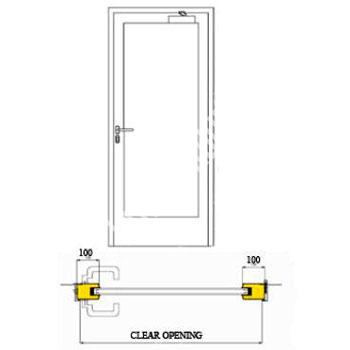

| Specifications | |||||||||||
| Product No. | Nominal Size | Size of Frame | Cutout in Bulkhead | Glass Thickness/mm | |||||||
| B¡ÁL | B1¡ÁL1 | B2¡ÁL2 | |||||||||
| MOUE010-BG001 | 600¡Á1600 | 625¡Á1625 | 700¡Á1700 | 30 | |||||||
| MOUE010-BG002 | 650¡Á1650 | 675¡Á1675 | 750¡Á1750 | ||||||||
| Sizes and colors will customize according to your requirements | |||||||||||
