Product Name |
Sliding B30 Fire Door | ||||||||||
|
Description |
Meet IMO, SOLAS requirements | ||||||||||
|
Light and easy operation, passed standard fire test | |||||||||||
|
Available in natural finish, primed or coated as customer's requirements | |||||||||||
|
Application |
Used for bulkheads or combination of bulkhead and ceramic cotton with fireproof requirements | ||||||||||
|
Material |
Steel | ||||||||||
|
Stuffing |
Fireproof material | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||

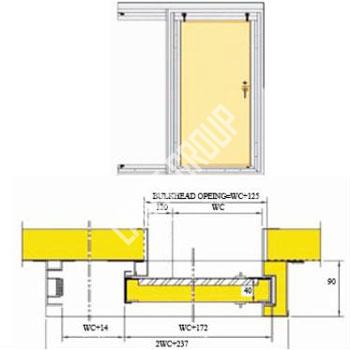

| Specifications | |||||||||||
| Product No. | Nominal Size | Track Length | Cutout in Bulkhead | Door Leaf Thickness/mm | |||||||
| B¡ÁL | B1 | B2¡ÁL2 | |||||||||
| MOUE010-BF001 | 600¡Á1600 | 1437 | 725¡Á1623 | 40 | |||||||
| MOUE010-BF002 | 650¡Á1650 | 1537 | 775¡Á1673 | ||||||||
| MOUE010-BF003 | 700¡Á1750 | 1637 | 825¡Á1773 | ||||||||
| Sizes and colors will customize according to your requirements | |||||||||||
