Product Name |
Hinged B30 Fire Door | ||||||||||
|
Description |
Meet IMO, SOLAS requirements | ||||||||||
|
Light and easy operation, passed standard fire test | |||||||||||
|
Available in natural finish, primed or coated as customer's requirements | |||||||||||
|
Application |
For interior use | ||||||||||
|
Max. Size |
800x2000mm | ||||||||||
|
Door Leaf |
PVC coated or painted steel sheets | ||||||||||
|
Door Frame |
1.5mm painted mild steel | ||||||||||
|
Hinges |
Stainless steel | ||||||||||
|
Core Material |
Rockwool | ||||||||||
|
Option |
Vision panel/top panel/panic bar/louver/kick-out panel, B15 fire proof available | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||

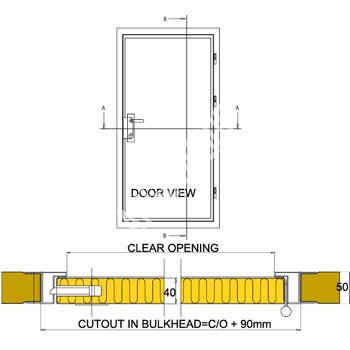

| Specifications | |||||||||||
| Product No. | Nominal Size | Size of Frame | Cutout in Bulkhead | Door Leaf Thickness/mm | |||||||
| B¡ÁL | B1¡ÁL1 | B2¡ÁL2 | |||||||||
| MOUE010-BE001 | 600¡Á1650 | 700¡Á1750 | 690¡Á1740 | 39 | |||||||
| MOUE010-BE002 | 600¡Á1700 | 700¡Á1800 | 690¡Á1790 | ||||||||
| MOUE010-BE003 | 650¡Á1650 | 750¡Á1750 | 740¡Á1740 | ||||||||
| Sizes and colors will customize according to your requirements | |||||||||||
