Product Name |
Sliding B15 Fire Door | ||||||||||
|
Description |
Meet IMO, SOLAS requirements | ||||||||||
|
Light and easy operation, passed standard fire test | |||||||||||
|
Available in natural finish, primed or coated as customer's requirements | |||||||||||
|
Application |
For interior use | ||||||||||
|
Max. Size |
800x2000mm | ||||||||||
|
Door Leaf |
1mm PVC foiled steel plate with mineral wool core, optional painted mild-steel or stainless steel surface | ||||||||||
|
Door Frame |
2mm painted mild steel or stainless steel, clamped or bolted | ||||||||||
|
Core Material |
Rockwool | ||||||||||
|
Option |
Louver/vision panel, electric/manual operation | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||

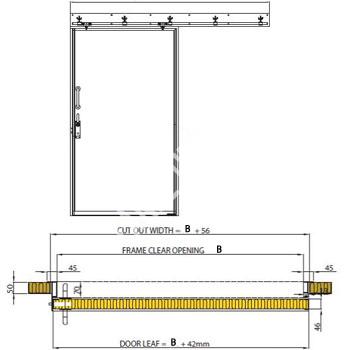

| Specifications | |||||||||||
| Product No. | Nominal Size | Track Length | Cutout in Steel Wall | Door Leaf Thickness/mm | |||||||
| B¡ÁL | B1 | B2¡ÁL2 | |||||||||
| MOUE010-BD001 | 700¡Á1700 | 1300 | 756¡Á1756 | 46 | |||||||
| MOUE010-BD002 | 750¡Á1750 | 1400 | 806¡Á1806 | ||||||||
| MOUE010-BD003 | 800¡Á1800 | 1500 | 856¡Á1856 | ||||||||
| Sizes and colors will customize according to your requirements | |||||||||||
