Product Name |
Hinged B15 Fire Door (Double) | ||||||||||
|
Description |
Meet IMO, SOLAS requirements | ||||||||||
|
Light and easy operation, passed standard fire test | |||||||||||
|
Available in natural finish, primed or coated as customer's requirements | |||||||||||
|
Application |
Used for bulkheads or combination of bulkhead and ceramic cotton with fireproof requirements | ||||||||||
|
Material |
Steel | ||||||||||
|
Stuffing |
Fireproof material | ||||||||||
|
Optional Parts |
Hose-port/Window/Kickout Panel | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||

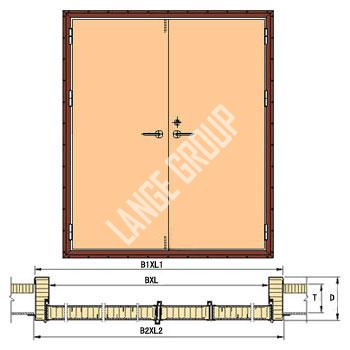

| Specifications | |||||||||||
| Product No. | Nominal Size | Size of Frame | Cutout in Steel Wall | Frame Thickness/mm | Weight | ||||||
| B¡ÁL | B1¡ÁL1 | B2¡ÁL2 | D | kg | |||||||
| MOUE010-BC001 | 1100¡Á1700 | 1194¡Á1794 | 1200¡Á1800 | T+50 | 196 | ||||||
| MOUE010-BC002 | 1200¡Á1700 | 1294¡Á1794 | 1300¡Á1800 | 207 | |||||||
| MOUE010-BC003 | 1300¡Á1700 | 1394¡Á1794 | 1400¡Á1800 | 218 | |||||||
| MOUE010-BC004 | 1400¡Á1700 | 1494¡Á1794 | 1500¡Á1800 | 228 | |||||||
| MOUE010-BC005 | 1100¡Á1750 | 1194¡Á1844 | 1200¡Á1850 | 201 | |||||||
| MOUE010-BC006 | 1200¡Á1750 | 1294¡Á1844 | 1300¡Á1850 | 212 | |||||||
| MOUE010-BC007 | 1300¡Á1750 | 1394¡Á1844 | 1400¡Á1850 | 223 | |||||||
| Sizes and colors will customize according to your requirements | |||||||||||
