Marine Pipe Fitting >> Bend >> Bronze >> 87.5 Degree Bend

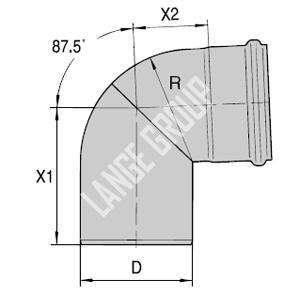

Product Name 87.5 Degree Bend
Product No. D X1 X2 R Weight(kg)
MFVE609-BE001 50 86 40 50 0.2
MFVE609-BE002 75 107 53 75 0.4
MFVE609-BE003 110 134 73 110 0.7
MFVE609-BE004 125 158 93 125 1.7
MFVE609-BE005 160 181 105 171 2.1
MFVE609-BE006 200 397 307 400 6.4
