Marine Door >> Fire Door >> Class H Fire Door >> Quick-acting H120 Fire DoorQuick-Acting Weathertight H120 Fire Door
 |
 | ||||||||||
|
Product Name |
Quick-Acting Weathertight H120 Fire Door | ||||||||||
|
Description |
Meet IMO, SOLAS requirements | ||||||||||
|
Passed standard fire test, easy operation | |||||||||||
|
Available in natural finish, primed or coated as customer's requirements | |||||||||||
|
Application |
Used for bulkheads or combination of bulkhead and ceramic cotton with hydrocarbon fireproof requirements, offshore platform | ||||||||||
|
Material |
Steel | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||

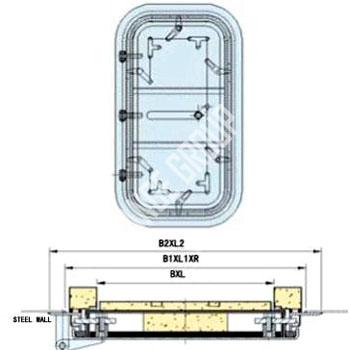

| Specifications | |||||||||||
| Product No. | Nominal Size | Size of Outline | Cutout in Steel Wall | Leaf Thickness | Weight | ||||||
| B¡ÁL | B2¡ÁL2 | B1¡ÁL1¡ÁR | kg | ||||||||
| MOUE010-HQ001 | 700¡Á1500 | 996¡Á1796 | 900¡Á1700¡Á200 | 8 | 235 | ||||||
| MOUE010-HQ002 | 700¡Á1600 | 996¡Á1896 | 900¡Á1800¡Á200 | 240 | |||||||
| MOUE010-HQ003 | 700¡Á1700 | 996¡Á1996 | 900¡Á1900¡Á200 | 245 | |||||||
| MOUE010-HQ004 | 800¡Á1500 | 1096¡Á1796 | 1000¡Á1700¡Á200 | 245 | |||||||
| MOUE010-HQ005 | 800¡Á1600 | 1096¡Á1896 | 1000¡Á1800¡Á200 | 255 | |||||||
| MOUE010-HQ006 | 800¡Á1700 | 1096¡Á1996 | 1000¡Á1900¡Á200 | 260 | |||||||
| Sizes and colors will customize according to your requirements | |||||||||||
