Wire Rope Blocks >> Swivel Directional Blocks
Product Name Swivel Directional Blocks
Product Material Steel
Product No. Wll Wire size Bearing Dimensions (mm) Weight

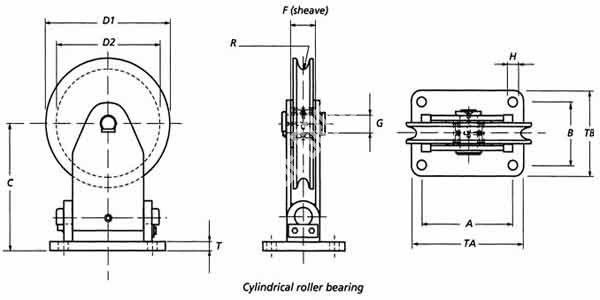

(t) up to (mm) D1 D2 A B C F G H T R TA TB (kg)
Bronze Bushing
MHAE074-SD001 1 10 Bronze 125 105 90 70 128 27 22 9 8 5.5 115 95 3.5
MHAE074-SD002 2 12 Bronze 150 120 115 85 160 40 30 11 10 6.5 140 110 6.5
MHAE074-SD003 3 14 Bronze 200 165 150 95 197 40 30 13.5 12 7.5 180 125 11
MHAE074-SD004 4 18 Bronze 250 210 190 120 240 45 35 17.5 15 9.5 230 160 21
MHAE074-SD005 6 20 Bronze 300 255 220 150 295 50 40 22 20 11 270 200 33
MHAE074-SD006 8 22 Bronze 350 305 270 160 350 50 45 26 25 12 330 220 52
MHAE074-SD007 10 24 Bronze 400 345 300 190 400 60 50 32 30 13 370 260 80
Ball or Cylindrical Roller bearing
MHAE074-SD001 1 10 Bronze 125 105 90 70 128 27 22 9 8 5.5 115 95 3.5
MHAE074-SD002 2 12 Bronze 150 120 115 85 160 40 30 11 10 6.5 140 110 6.5
MHAE074-SD003 3 14 Bronze 200 165 150 95 197 40 30 13.5 12 7.5 180 125 11
MHAE074-SD004 4 18 Bronze 250 210 190 120 240 45 35 17.5 15 9.5 230 160 21
MHAE074-SD005 6 20 Bronze 300 255 220 150 295 50 40 22 20 11 270 200 33
MHAE074-SD006 8 22 Bronze 350 305 270 160 350 50 45 26 25 12 330 220 52
MHAE074-SD007 10 24 Bronze 400 345 300 190 400 60 50 32 30 13 370 260 80

Note:
1. WLL= Working Load Limit
2. No test certificate possible.
3. Groove in sheave may be adjusted to other Wire rope diameters.
4. Minimum Ultimate Strength = 4 x WLL.
